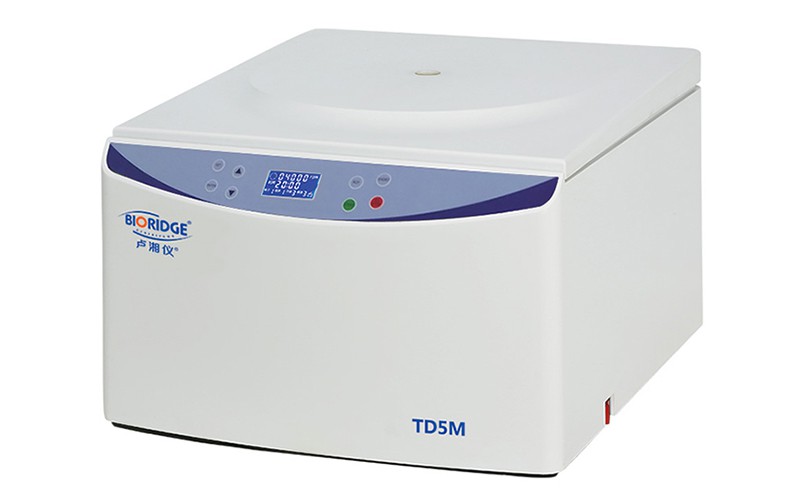

It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
Send InquiryTechnical performance
• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Up to 9 user programs storage meet more demands.
• It has self-locking, over-speed detection, overtemperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TD5M |
|
Max speed |
5000r/min |
|
Max RCF |
5030xg |
|
Max capacity |
4x500ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1min~99min59s |
|
Noise |
<65db(A) |
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
Consumption |
750w |
|
Dimension(L×W×H) |
460mm×540mm×340mm |
|
Packing size(L×W×H) |
550mm×630mm×430mm |
|
Net weight (No rotor) |
31kg |
Rotor for TD5M
|
No1 |
Capacity:4 x500ml Max Speed:4000r/min Max RCF:3040 xg |
500 ml Bucket 500ml PE Bottle |
Adaptor:4 x18 x1.5ml、4 x19 x5ml/7ml (Blood Vacuum Tube)、 4 x 14x 10ml (Internal Thread)、4 x 9x 15ml、4 x7 x20ml、4 x100ml、4 x250ml |
|
|
Square Bucket |
Adaptor:4 x25 x1.5ml、4 x28 x5ml (Blood Vacuum Tube)、 4 x 20 x 10ml (Internal Thread)、4 x 10x 15ml、4 x4 x50ml、4 x250ml |
|||
|
4 x14 x5ml/7ml Aerosol Cover (Option) 4 x19 x5ml/7ml Aerosol Cover (Option) 4 x24 x7ml Blood Vacuum Tube Microplate Bucket 4 x2 x96 Thickness≤15.5mm x2 |
||||
 |
||||
|
No2 |
Capacity:8x50ml /4 x100ml Max Speed:5000r/min Max RCF:5030xg |
4 x100ml
|
Adaptor:4x4x1.5ml、4 x4x5ml/7ml、4 x2 x5ml、 4 x 3 x 10ml、4x 15ml、4 x20ml、4 x50ml、4 x100ml
|
|
|
4 x2 x50ml |
||||
|
No3 |
Capacity:4 x250ml Max Speed:4000r/min Max RCF:3200 xg |
250 ml Bucket 250ml PE Bottle |
Adaptor:4x9x1.5ml、4 x7x5ml、4 x9 x5ml/7ml (Blood Vacuum Tube)、 4 x 7 x 10ml (Internal Thread)、4 x 5x 15ml、4 x4 x20ml、4 x50ml、4 x100ml、4 x250ml
|
|
|
No3 |
Max Speed: 4000r/min Max RCF:3200 xg |
Adaptor:4 x12 x7ml、4 x6 x15ml、4 x9 x15ml、4 x50ml、4 x2 x50ml、4 x100ml
|
||
|
No3 |
Capacity:4 x 18 x 7ml Max Speed:4000r/min Max RCF:3200xg
|
No4 |
Capacity:2 x 2 x 96 Max Speed:4000r/min Max RCF:2200xg Microplate Bucket |
|
|
No5 |
Capacity:12x 15ml Max Speed:5000r/min Max RCF:3500xg |
No5 |
Capacity:8 x 50ml Max Speed:5000r/min Max RCF:3500xg |
|
