·Microcomputer control ,DC brushless motor ,stable operation ,Low noise and high speed accuracy.
·Touch panel, programmable operation ,operation data can be set according to demands and stored automatically.
Technical performance

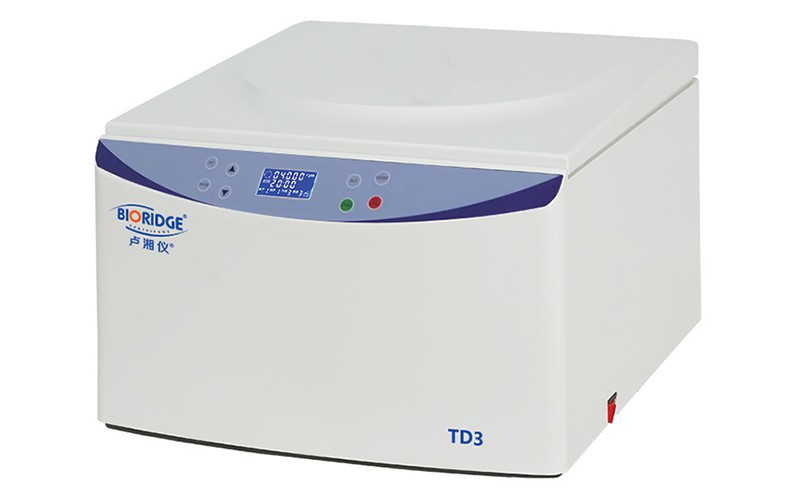

• This machine is used in immune hematology laboratory for blood separation and determining the antigens and antibody.
• It has micro-computer control, electronic lock and DC brushless motor which is low noise and high speed accuracy.
• Digital LCD screen make visualized operation conveniently.
• Up to 9 user programs storage meet more demands.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TD3 |
TD3 |
|
Max speed |
3000r/min |
3000r/min |
|
Max RCF |
730xg |
730xg |
|
Max capacity |
6x0.5ml |
12x2ml |
|
Speed accuracy |
± 30r/min |
|
|
Time setting |
1s-99min59sec/1min-99min |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
150w |
|
|
Dimension(L×W×H) |
330mm×420mm×280mm |
410mm×490mm×310mm |
|
Packing size(L×W×H) |
430mm×520mm×390mm |
500mm×580mm×400mm |
|
Net weight (No rotor) |
14kg |
22kg |
Rotor
|
No1 |
Capacity: 6x0.5ml Max Speed: 300r/min Max RCF: 730xg |
No2 |
Capacity: 12x2ml Max Speed: 3000r/min Max RCF: 730xg |
