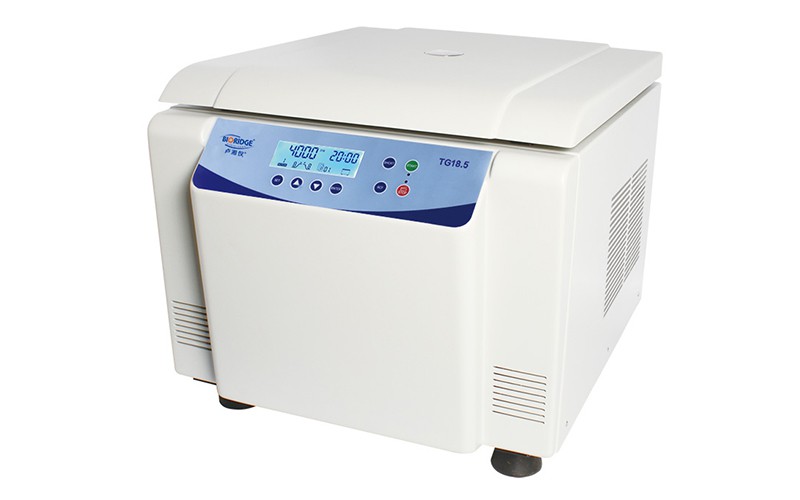

TG18.5 Tabletop High Speed Centrifuge

high-speed laboratory centrifuge is a routine laboratory centrifuge, widely used in research, education and production departments of biology, chemistry, medicine, etc. It is used in laboratories, scientific research, schools and other departments, and is suitable for rapid separation and synthesis of trace samples.

Send Inquiry

Technical performance

• The max speed is 18500rpm, and the largest capacity of swing rotor is 4X500ml.

• It has micro-computer control, electronic lock and DC brushless motor which is low noise and high speed accuracy.

• Digital LCD screen make visualized operation conveniently.

• Automatic rotor recognition make safety for multiple rotors choice. (Option)

• Up to 9 user programs storage meet more demands.

• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.

• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.

• Silastic sealed ring comfort to GMP, US FDA certificated.

Specification

Model	TG18.5	TD5Z
Max speed	18500r/min	5000r/min
Max RCF	23797xg	5030xg
Max capacity	4x500ml
Speed accuracy	± 10r/min
Time setting	1s~99min59s
Noise	<65db(A)
Power supply	AC110V/AC220V, 50Hz-60Hz
Consumption	750w
Dimension(L×W×H)	465mm×560mm×380mm
Packing size(L×W×H)	560mm×650mm×470mm
Net weight (No rotor)	50kg

Rotor for TG18.5

No1	Capacity: 12x1.5ml Max Speed:18500r/min Max RCF: 23797xg Adaptor: 0.2ml、0.5ml	No2	Capacity: 10x5ml Max Speed: 13000r/min Max RCF: 11400xg Adaptor: 0.5ml、1.5ml
No2	Capacity: 12x5ml Max Speed: 13000r/min Max RCF: 11400xg	No3	Capacity: 12x10ml Max Speed:12000r/min Max RCF: 14800xg Adaptor: 1.5ml、5ml
No3	Capacity: 8x15ml Max Speed:12000r/min Max RCF: 14800xg Adaptor: 1.5ml、5ml	No4	Capacity:6x50ml Max Speed: 13000r/min Max RCF: 17940xg
No4	Capacity: 4x100ml Max Speed: 12000r/min Max RCF: 13000xg Adaptor: 10ml、20ml	No7	Capacity: 24x1.5ml/2.2ml Max Speed: 13200r/min Max RCF: 16110xg Adaptor: 0.2ml、0.5ml
No8	Capacity:36x0.5ml Max Speed: 16000r/min Max RCF: 23669xg	No8	Capacity:48x0.5ml Max Speed:16000r/min Max RCF: 23669xg
No9	Capacity:48x1.5ml Max Speed: 13000r/min Max RCF: 18505xg

Rotor for TG18.5 & TD5Z

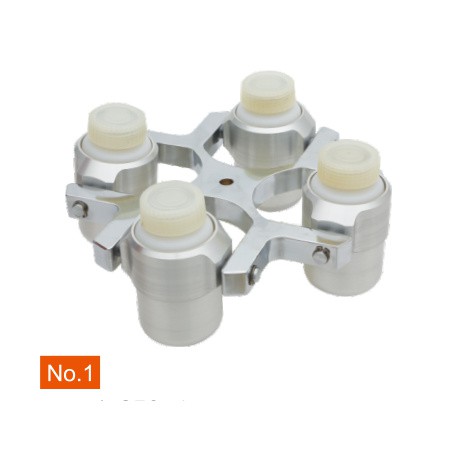

No1 product-1-1

Capacity:4 x250ml

Max Speed:4000r/min

Max RCF:3200 xg

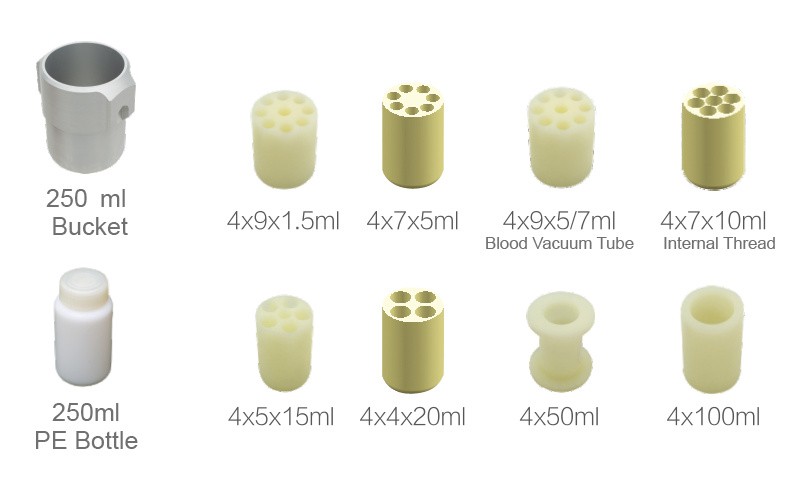

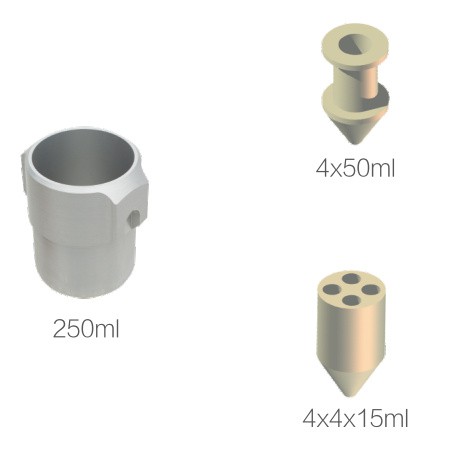

250 ml Bucket

250ml PE Bottle

Adaptor:4x9x1.5ml、4 x7x5ml、4 x9 x5ml/7ml (Blood Vacuum Tube)、 4 x 7 x 10ml (Internal Thread)、4 x 5x 15ml、4 x4 x20ml、4 x50ml、4 x100ml、4 x250ml

product-1-1

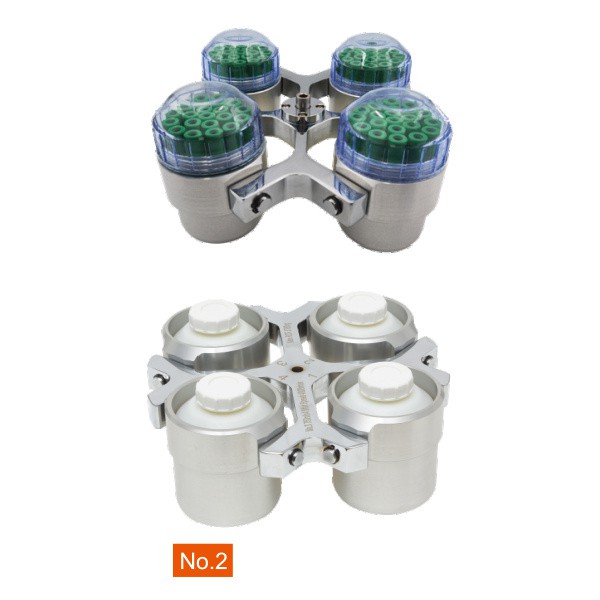

No2 product-1-1

Capacity:4 x500ml

Max Speed:4000r/min

Max RCF:3040 xg

4 x14 x5ml/7ml

Aerosol Cover (Option)

4 x24 x5ml

Blood Vacuum Tube

4 x19 x5ml/7ml

Aerosol Cover (Option)

4 x37 x7ml

G RIA Tube

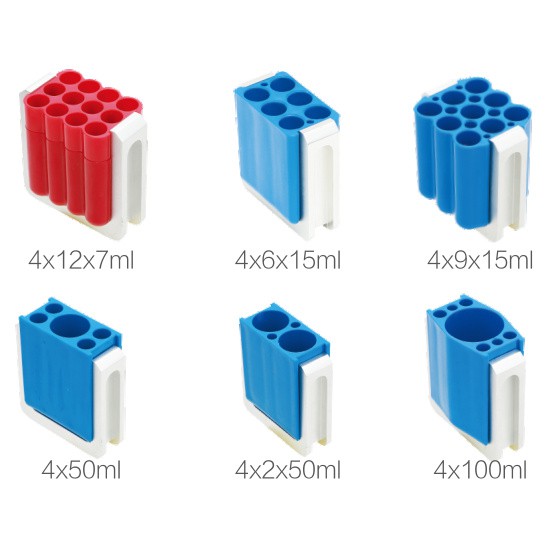

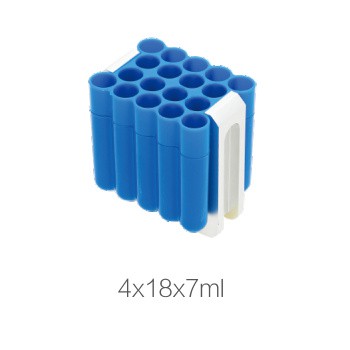

Square Bucket Adaptor:4 x25 x1.5ml、4 x28 x5ml (Blood Vacuum Tube)、 4 x 20 x 10ml (Internal Thread)、4 x 10x 15ml、4 x4 x50ml、4 x250ml

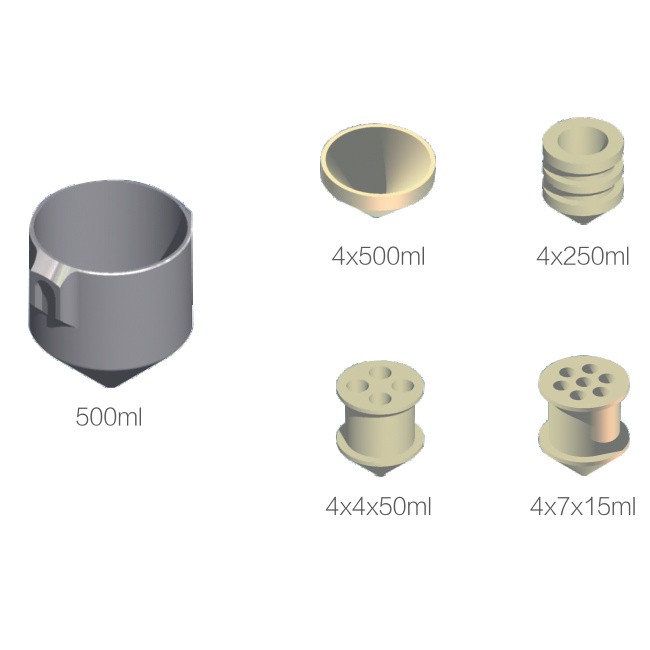

500 ml Bucket Adaptor:

4 x19 x5ml/7ml、4 x9x15ml、 4 x 7 x 20ml、4 x3x50ml、4 x100ml、4 x250ml

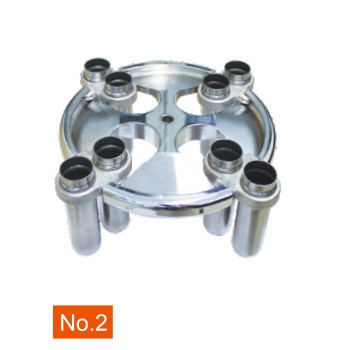

No2 product-1-1

Capacity: 8 x50ml

Max Speed:5000r/min

Max RCF:5030xg

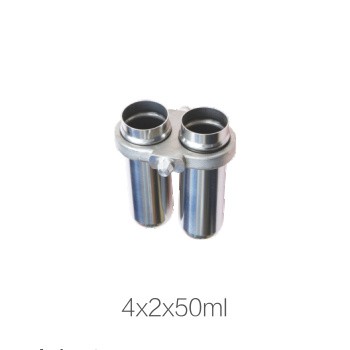

4 x 2 x 50ml

product-1-1

Adaptor: 8 x 2 x 1.5ml、8 x 5ml、8 x 5ml/7ml、8 x 10ml、8 x 15ml、8 x 20ml

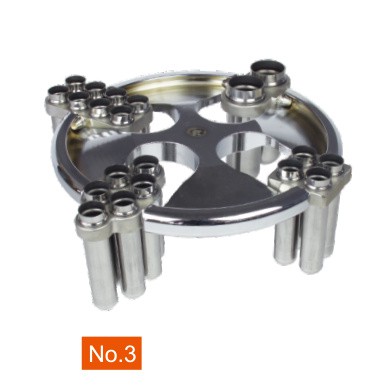

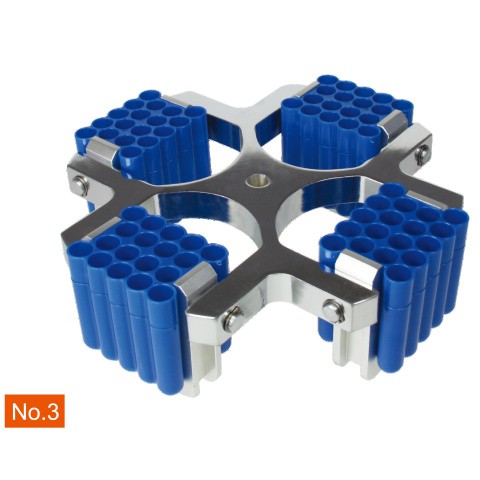

No3 product-1-1

Max Speed: 4000r/min

Max RCF:3020 xg

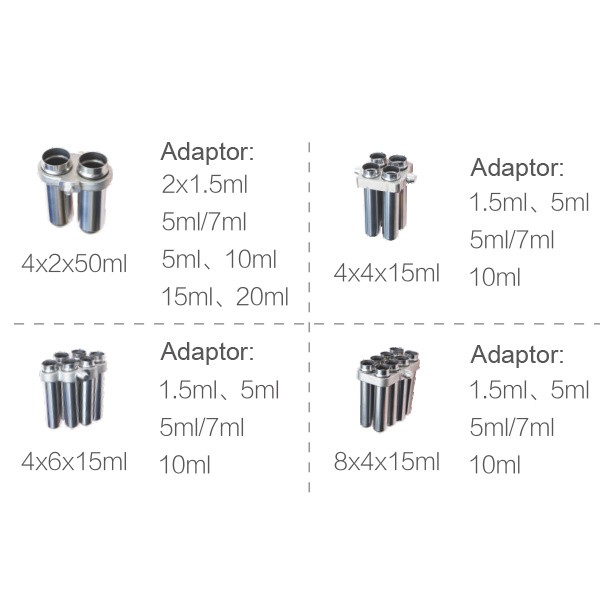

Adaptor: 4x2x1.5ml、4x4x1.5ml、4x6x1.5ml、8x4x1.5ml、4x2x5ml/7ml、4x4x5ml/7ml、4 x6x5ml/7ml、8x4x5ml/7ml、 4 x 2 x 10ml、4 x 4 x 10ml、4 x 6 x 10ml、8x4x10ml、4 x 2 x15ml、4 x2 x20ml、4 x4 x15ml、4 x6 x15ml、8x4x15ml、4 x2 x50ml

product-1-1
