The high-speed benchtop centrifuge mainly extracts the required components from the liquid mixture. According to the density of each substance, after high-speed rotation, the dense liquid sinks to the bottom layer, and the small density liquid floats on it, thus stratifying the liquid. Refine the pure things I need. It is used in many fields such as medicine and chemical industry.
Send InquiryTechnical performance
• The max speed is 21000rpm, and the largest capacity of swing rotor is 4X750ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• LCD touch screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• Automatic rotor recognition make safety for multiple rotors choice. (Option)
• Up to 6 user programs storage in the surface is selected directly.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TGL-21M |
L580R |
|
Max speed |
21000r/min |
5800r/min |
|
Max RCF |
30642xg |
5060xg |
|
Max capacity |
4x750ml |
|
|
Speed accuracy |
± 10r/min |
|
|
Time setting |
1s~99h 59min59s |
|
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
|
Temperature accuracy |
±1 ℃ |
|
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
1.5kw |
|
|
Dimension(L×W×H) |
734mm×620mm×445mm |
|
|
Packing size(L×W×H) |
910mm×720mm×620mm |
|
|
Net weight (No rotor) |
100kg |
|
Rotor for TGL-21M
|

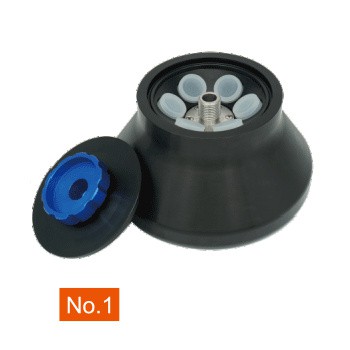

No1
|
Capacity: 12x1.5ml/2.2ml Max Speed: 21000r/min Max RCF:30642xg Adaptor: 0.2ml、0.5ml |
No2
|
Capacity: 12x5ml Max Speed: 16500r/min Max RCF: 19175xg Adaptor: 0.2ml、0.5ml |
|
No3
|
Capacity: 6x30ml Max Speed: 15000r/min Max RCF: 23120xg |
No3
|
Capacity: 12x10ml Max Speed: 15000r/min Max RCF: 23120xg Adaptor: 1.5ml、5ml |
|
No4
|
Capacity: 6x50ml Max Speed: 13000r/min Max RCF: 17940xg |
No7 GL-25M only |
Capacity: 24x1.5ml/2.2ml Max Speed: 16500r/min Max RCF: 26050xg Adaptor: 0.2ml、0.5ml |
|
No8
|
Capacity: 6x85ml Max Speed: 12000r/min Max RCF: 15805xg Adaptor: 5ml、15ml、20ml |
No9 |
Capacity: 6x100ml Max Speed: 10000r/min Max RCF: 11960xg Adaptor: 10ml、20ml |
|
No10 |
Capacity: 48x15ml Max Speed: 15500r/min Max RCF: 26307xg Adaptor: 0.2ml、0.5ml |
|
|
Rotor for TGL-21M & L580R
|
No1 |
Capacity: 6x50ml Max Speed: 5800r/min Max RCF: 5060 xg Adaptor:15ml、20ml |

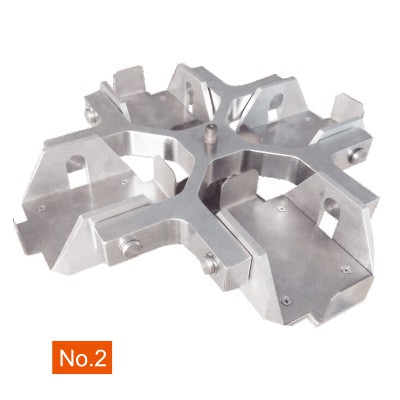

No2 |

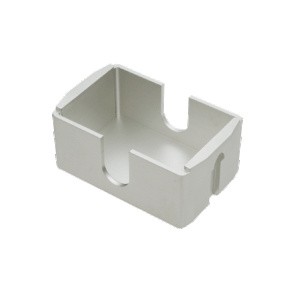

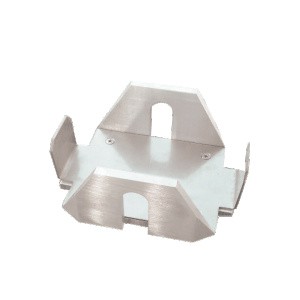

Capacity: 4 x2 x96 Max Speed: 4000r/min Max RCF:3040 xg Microplate Bucket 4 x2 x96 Thickness≤15.5ml x2
|
|

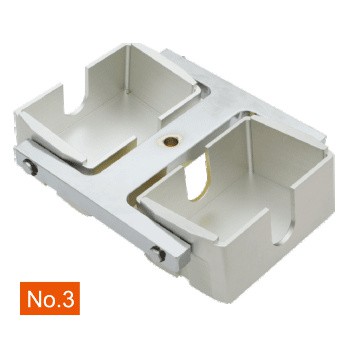

No3 |
Capacity: 2 x2 x96 Max Speed: 4000r/min Max RCF:2200 xg 2 x2 x96 Microplate Bucket
|

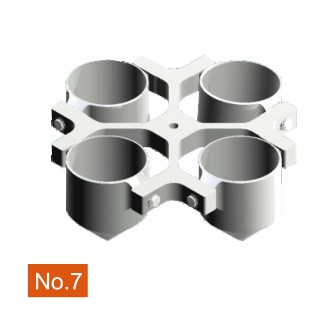

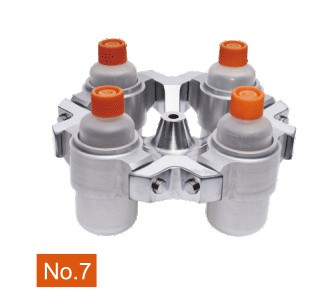

No7
|

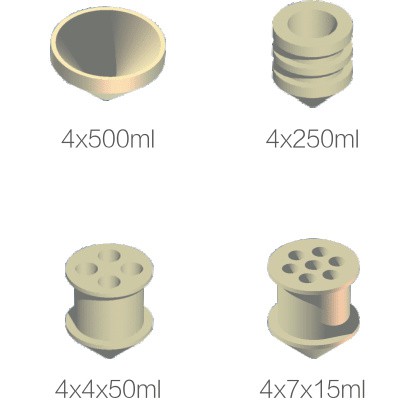

Capacity:4x500ml (Conical) Max Speed:4000r/min Max RCF:3310 xg 500mlAdaptor:4 x500ml、4 x250ml、4 x4 x50ml、4 x7 x15ml
|
|
No7 |
Capacity:4 x250ml (Conical) Max Speed:4000r/min Max RCF:3310 xg 250mlAdaptor:4 x50ml、4 x4 x15ml |
|
|
|

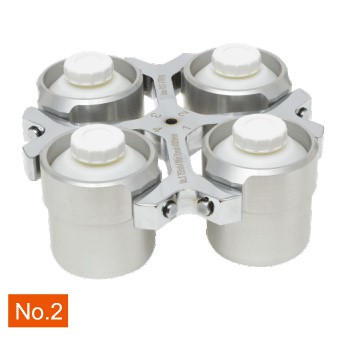

No2
|
Capacity:4 x500ml Max Speed:4000r/min Max RCF:3040 xg |

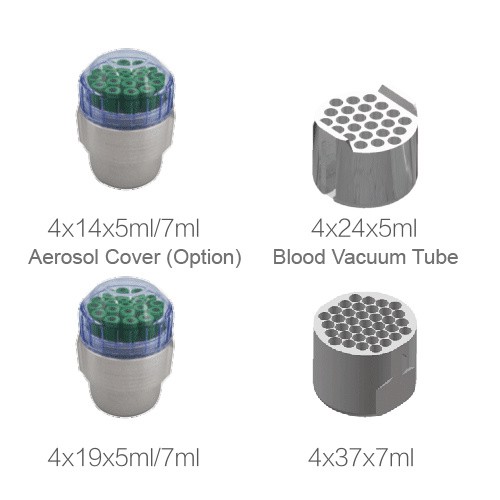

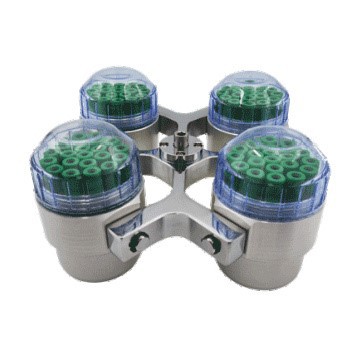

4 x14 x5ml/7ml Aerosol Cover (Option) 4 x24 x5ml Blood Vacuum Tube 4 x19 x5ml/7ml Aerosol Cover (Option) 4 x37 x7ml G RIA Tube |
Square Bucket Adaptor:4 x25 x1.5ml、4 x28 x5ml (Blood Vacuum Tube)、 4 x 20 x 10ml (Internal Thread)、4 x 10x 15ml、4 x4 x50ml、4 x250ml 500 ml Bucket Adaptor: 4 x19 x5ml/7ml、4 x9x15ml、 4 x 7 x 20ml、4 x3x50ml、4 x100ml、4 x250ml |
 |
|||
|

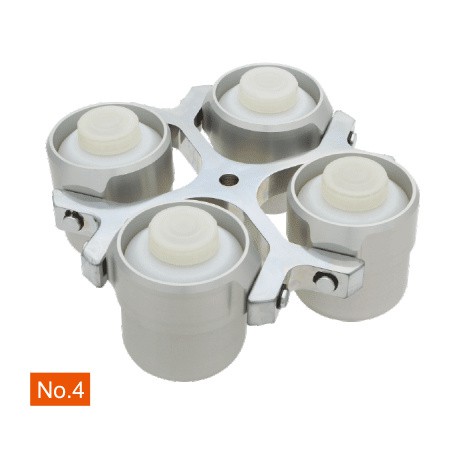

No4 |
Capacity:4 x750ml Max Speed:4000r/min Max RCF:3780xg |

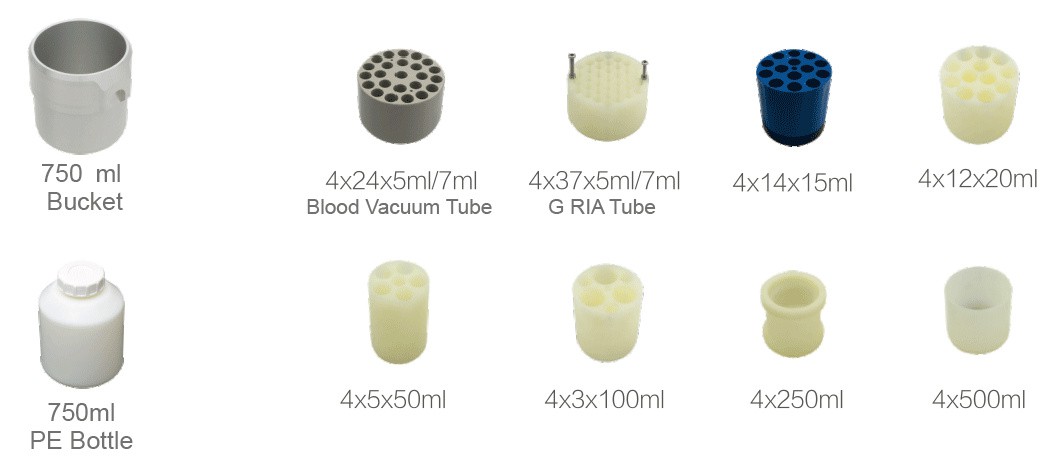

750ml Bucket 750ml PE Bottle |
4 x24 x5ml/7ml (Blood Vacuum Tube)、 4x37x5ml/7ml(G RIA Tube)、 4 x14 x15ml、 4 x12 x20ml、 4 x5 x50ml、 4 x3 x100ml、 4 x250ml、 4 x500ml |
 |
|||
|

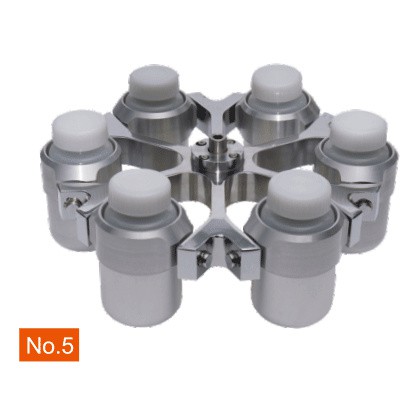

No5 |
Capacity:6 x250ml Max Speed:4200r/min Max RCF:3500xg |

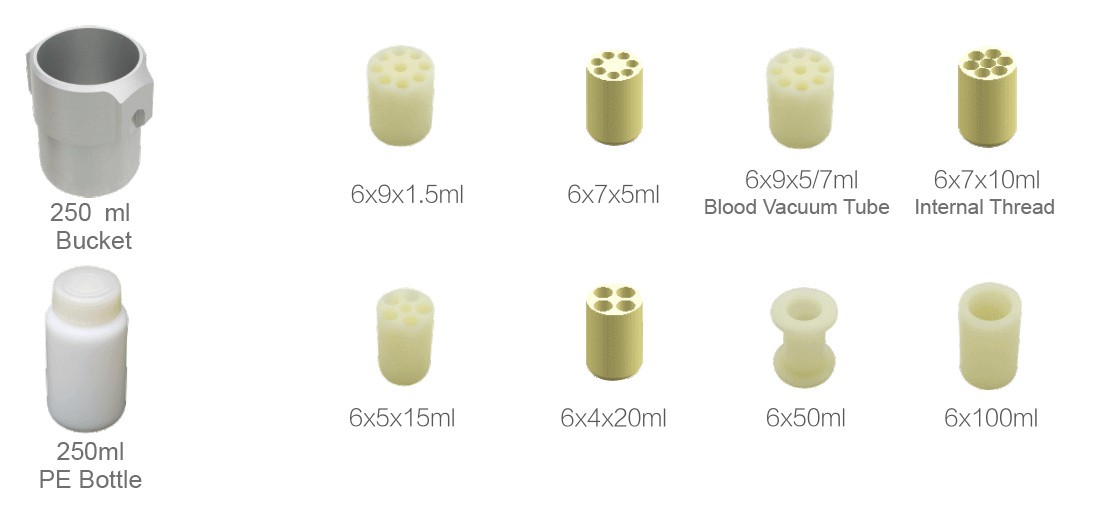

250 ml Bucket |
6x9x1.5ml、 6x7 x5ml、 6x9x5/7ml(Blood Vacuum Tube)、 6x7x10ml(Internal Thread)、 6x5x15ml、 6x4 x20ml、 6 x50ml、 6 x100ml  |
|

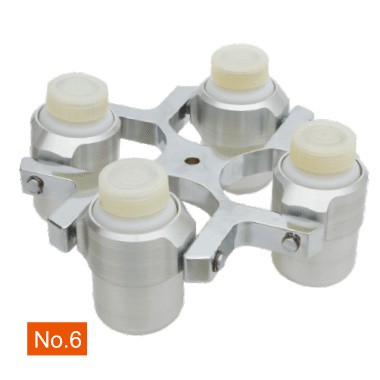

No6  |
Capacity:4 x250ml Max Speed:4300r/min Max RCF:3582xg |
250ml PE Bottle |
|
