．Microcomputer control, DC brushless motor, stable operation, low noise and high speed accuracy.
．Touch panel, programmable operation, operation data can be set according to demands and stored automatically.
．LED display. user-friendly interface, simple and convenient operations.
Specification
|
Model |
TD4X |
|
|
Rotor type |
HLA |
SERO |
|
Rotor capacity |
(0.25ml-1ml)x12 |
7mlx12 |
|
Max RCF |
2000xg |
1000xg |
|
Drive |
Micocomputer control, brushless DC motor drive |
|
|
Time range |
Program fixed |
|
|
Noise |
<60db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
150w |
|
|
Dimension(L×W×H) |
330mm×420mm×280mm |
|
|
Packing size(L×W×H) |
430mm×520mm×390mm |
|
|
Net weight (No rotor) |
15kg |
|
Parameter
|
Rotor |
Key |
RCF Fixed |
Time Fixed |
Effective Solution |
|

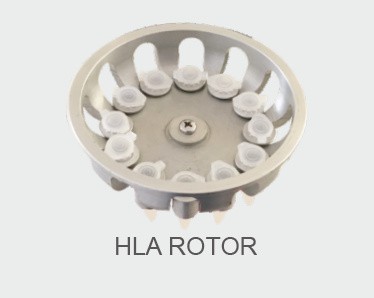

HLA rotor |
1 |
2000xg |
180s |
Lymphocyte separation incubated cell separation |
|
2 |
1000xg |
3s |
Hematob last exenterate(thrombin disposal) |
|
|
3 |
1000xg |
60s |
Lymphocyte Washing |
|
|
SERO rotor |
1 |
500xg |
60s |
Blood grouping, image of hemagglutination reaction |
|
2 |
1000xg |
15s |
Cross matching, and the testing of antistaphyoloysin |
|
|
3 |
1000xg |
60s |
Hematocrit washing, the extraction of serum and plasma |
