It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
Send InquiryTechnical performance
• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
• Digital display make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R134a.
• It has self-locking, over-speed detection, overtemperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and deceleration to be setting according to the different requirement.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TDL-8M |
TDL-5M |
|
Max speed |
8000r/min |
5000r/min |
|
Max RCF |
9100xg |
4390xg |
|
Max capacity |
4x250ml |
72x7ml |
|
Speed accuracy |
± 30r/min |
|
|
Time setting |
1min~99min |
|
|
Temperature setting |
-5 ℃ ～ +35 ℃ |
|
|
Temperature accuracy |
±1 ℃ |
|
|
Compressor unit |
French Tecumseh Compressor Unit R134a |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
1.2kw |
|
|
Dimension(L×W×H) |
460mm×710mm×420mm |
|
|
Packing size(L×W×H) |
580mm×730mm×520mm |
|
|
Net weight (No rotor) |
80kg |
|
Rotor for TDL-8M
|
No1 |
Capacity: 4 x250ml Max Speed: 4300r/min Max RCF:3582xg |
Adaptor:4 x9 x1.5ml、4 x7 x5ml、4 x9 x5ml /7ml(Blood Vacuum Tube)、 4 x 7 x 10ml (Internal Thread)、4 x5 x15ml、4 x4 x20ml、4 x50ml、4 x100ml
|
|
|
No3 |
Capacity: 8x100ml Max Speed: 8000r/min Max RCF:9100xg Adaptor: 10ml、20ml |
|
|
Rotor for TDL-8M & TDL-5M
|

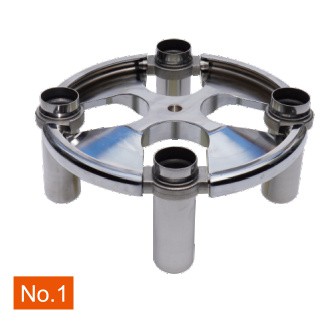

No1 |

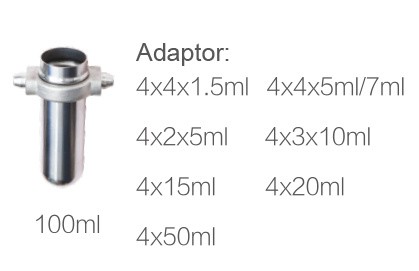

Capacity: 4 x100ml Max Speed: 5000r/min Max RCF:4390 xg |
Adaptor: 4x4x1.5ml、4 x4 x5ml/7ml、 4 x2x 5ml、4 x3 x10ml、4 x 15ml、4 x20ml、4 x50ml
|
|
|

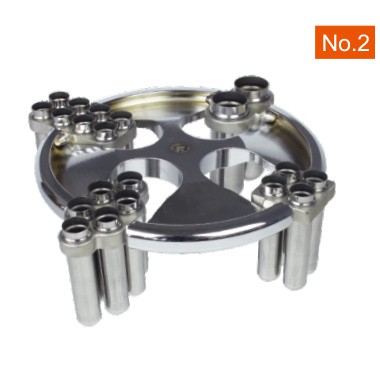

No2 |
Max Speed: 4000r/min Max RCF:2810 xg |

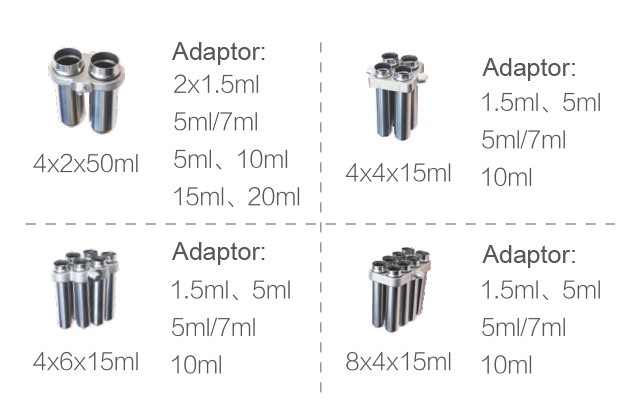

Adaptor: 4x2x1.5ml、4x4x1.5ml、4x6x1.5ml、8x4x1.5ml、4x2x5ml/7ml、4 x4x5ml/7ml、4 x6x5ml/7ml、8x4x5ml/7ml、 4 x 2 x 10ml、4 x 4 x 10ml、4 x 6 x 10ml、8x4x10ml、4 x 2 x15ml、4 x2 x20ml、4 x4 x15ml、4 x6 x15ml、8x4x15ml、4 x2 x50ml
|
|
|

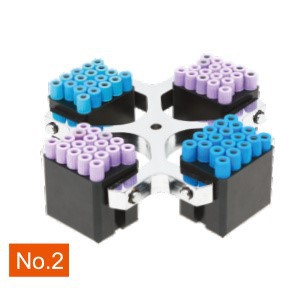

No2 |
Capacity: 4 x18x7ml Max Speed: 4000r/min Max RCF:2810xg 75mm length tube only |
No2
|
Capacity: 4 x12x7ml Max Speed: 4000r/min Max RCF:2810xg 75mm &100mm length tube |
|

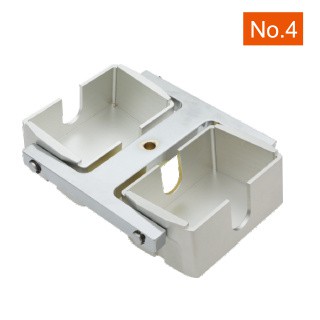

No4 |
Capacity: 2x2 x96 Max Speed: 4000r/min Max RCF:2200 xg (Microplate Bucket) |
|
|
