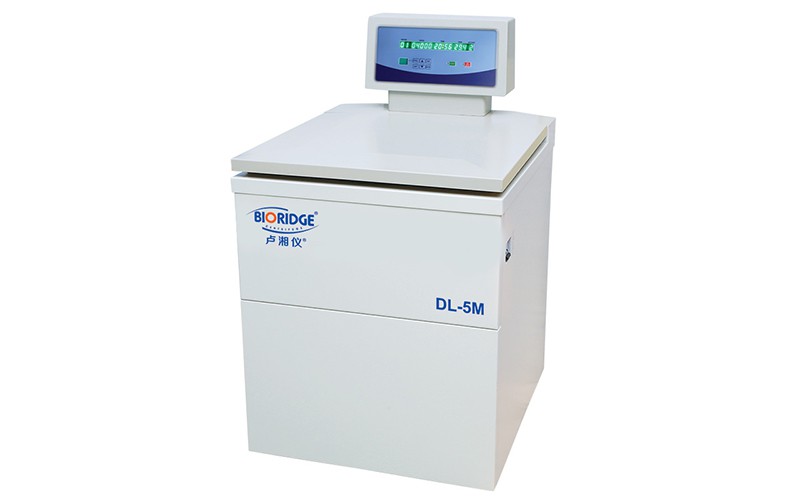

DL-5M Refrigerated Low-speed Centrifuge

It has self-locking device, over-speed safety device, over-temperature safety device, imbalance safety device and automatic alarm device. It has 10 files of acceleration and deceleration level for your choice. Silastic sealed ring comfort to GMP. US FDA certificated.

Send Inquiry

Technical performance

• The max capacity of swing rotor is 4X1000ml.

• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.

• Digital LCD screen make visualized operation conveniently.

• Imported compressor unit with Non-CFC refrigerant R404a.

• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.

• Essential configuration included rotor exchange, speed/RCF, time, temperature, 9 levels acceleration and deceleration is the most economical choice.

• Silastic sealed ring comfort to GMP, US FDA certificated.

Specification

Model	DL-5M	D5B
Max speed	5000r/min	5000r/min
Max RCF	4100xg 4640xg
Max capacity	4x1000ml
Speed accuracy	± 10r/min
Time setting	1s~99h 59min59s
Temperature setting	-20 ℃ ～ +40 ℃	No
Temperature accuracy	±1 ℃	No
Compressor unit	Yes	No
Noise	<65db(A)
Power supply	AC220V, 50Hz-60Hz
Consumption	2Kw	1.5Kw

Rotor

No1 DL-5M	Capacity: 6x300ml Max Speed: 5000r/min Max RCF:3850xg Adaptor: 50ml、100ml	No1 D5B	Capacity: 6x500ml Max Speed: 5000r/min Max RCF: 4640xg Adaptor: 50ml、100ml、 250ml
No2	Capacity: 4 x500ml Max Speed: 4000r/min Max RCF:3780 xg	Adaptor:4 x20 x1.5ml、4 x20 x5ml/7ml(Blood Vacuum Tube)、 4 x 15 x 10ml (Internal Thread)、4 x8 x15ml、4 x9 x20ml、4 x9 x20ml、4 x4 x50ml、4 x2 x100ml、4 x250ml
No2	Capacity: 4 x750ml Max Speed: 4000r/min Max RCF:3780	Adaptor:4 x21 x1.5ml、4 x24 x5ml/7ml(Blood Vacuum Tube)、 4 x 37 x 5ml/7ml (G RIA Tube)、4 x 20 x 10ml (Internal Thread)、4 x14 x15ml、4 x12 x20ml、4 x5 x50ml、4 x3 x100ml、4 x250ml、4 x500ml
No3	Capacity: 4 x1000ml Max Speed: 4000r/min Max RCF:4100 xg	Adaptor:4 x21 x1.5ml、4 x24 x5ml/7ml(Blood Vacuum Tube)、 4 x 37 x 5ml/7ml (G RIA Tube)、4 x 20 x 10ml (Internal Thread)、4 x14 x15ml、4 x12 x20ml、4 x5 x50ml、4 x3 x100ml、4 x250ml、4 x500ml
No5	Capacity: Square Bucket Max Speed: 4000r/min Max RCF:3040 xg	Adaptor:1.5mlx25x4、5mlx28x4(Blood Vacuum Tube)、10m x 20 x 4l(Internal Thread)、4 x10 x15ml、4 x4 x50ml、4 x250ml
No5	Capacity: 4 x2 x96 Max Speed: 4000r/min Max RCF:3040 xg (Microplate Bucket)
