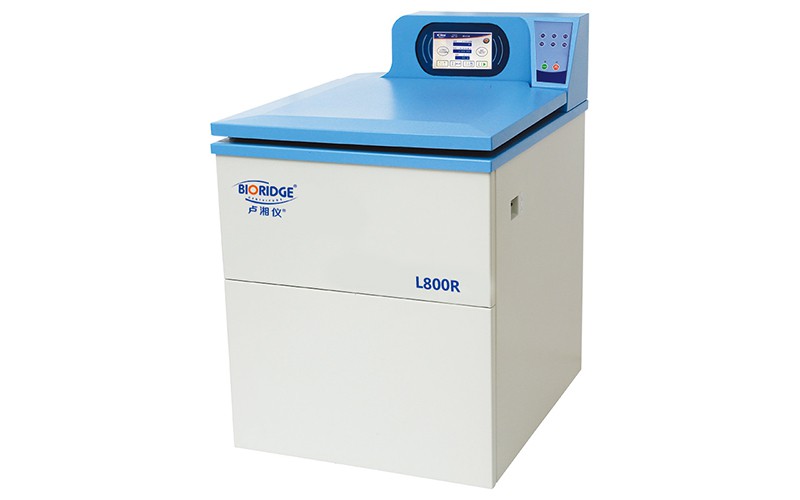

L800R UItra-Capacity Refrigerated Centrifuge

Technical performance

• The max speed is 12000rpm, and the largest capacity of swing rotor is 4X2000ml.

• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.

• Front LCD touch screen make operation conveniently in any installed position. (BH1200R)

• Imported compressor unit with Non-CFC refrigerant R404a.

• The operating data and failure record can be stored to read and print via USB interface. (BH1200R)

• Automatic rotor recognition make safety for multiple rotors choice. (BH1200R/H1200R)

• Up to 100 user programs storage. (BH1200R/H1200R)

• Multistep-stages program supplied meet more demands. (BH1200R)

• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.

• It has 10 levels acceleration and 11 levels deceleration to be setting according to the different requirement. Slow down freely is available. (BH1200R/H1200R)

• 9 levels acceleration and 9 levels deceleration. (GL-12M)

• Imported PC transparent bottles is suitable for high temperature sterilization. (BH1200R)

• Silastic sealed ring comfort to GMP, US FDA certificated.

Specification

Rotor

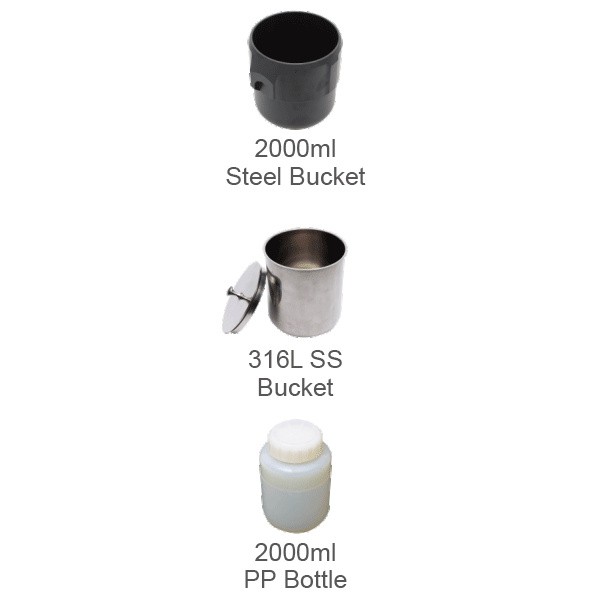

No1/No4	Capacity: 6x500ml/6x1000ml Max Speed: 8000r/min Max RCF: 11260xg Adaptor: 50ml、100ml、 250ml	No2	Capacity: 6x2000ml Max Speed: 4000r/min Max RCF: 6260xg Adaptor: 2000ml Steel Bucket、316L SS Bucket、2000ml PP Bottle

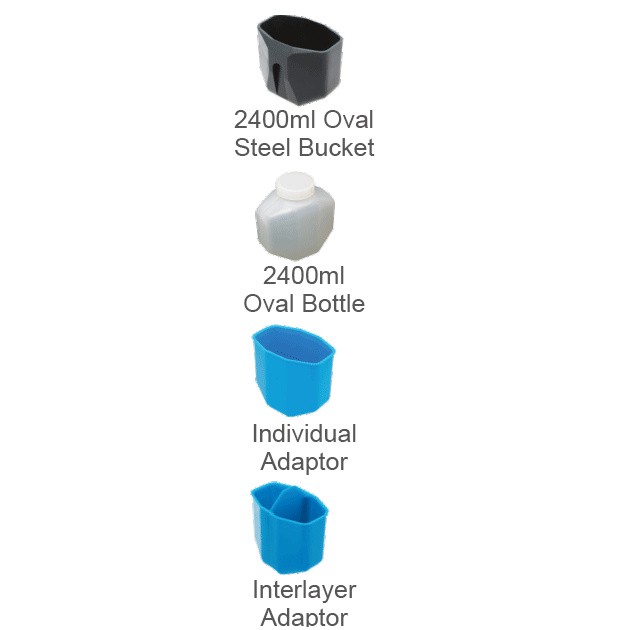

No2	Capacity: 6x2x1000ml Max Speed:4000r/min Max RCF: 6260xg Adaptor: 2x1000ml Steel Bucket	No3	Capacity: 6x2400ml Max Speed: 4500r/min Max RCF: 6950xg Adaptor: 2400ml Oval Steel Bucket、2400ml Oval Bottle、Individual Adaptor、Interlayer Adaptor
