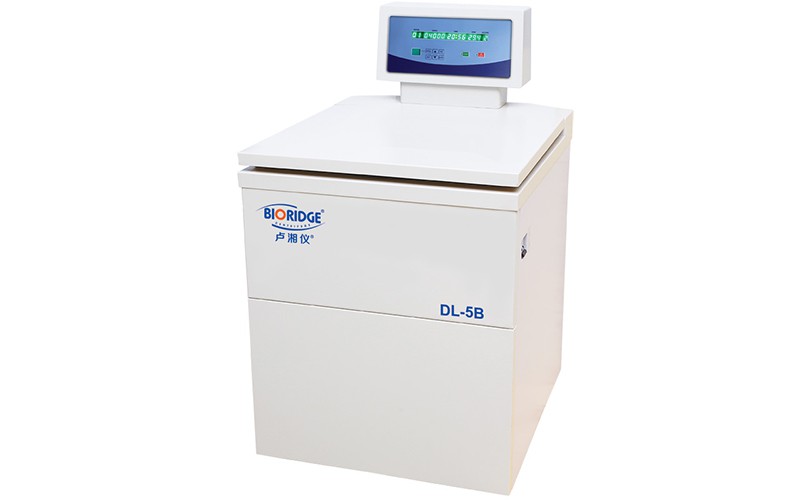

It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send InquiryTechnical performance
• The max capacity of swing rotor is 4X750ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• Essential configuration included rotor exchange, speed/RCF, time, temperature, 9 levels acceleration and deceleration is the most economical choice.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
DL-5B |
D5M |
|
Max speed |
5000r/min |
5000r/min |
|
Max RCF |
3780 xg |
|
|
Max capacity |
4x750ml |
|
|
Speed accuracy |
± 10r/min |
|
|
Time setting |
1s~99h 59min59s |
|
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
No |
|
Temperature accuracy |
±1 ℃ |
No |
|
Compressor unit |
Yes |
No |
|
Noise |
<65db(A) |
|
|
Power supply |
AC220V, 50Hz-60Hz |
|
|
Consumption |
2Kw |
1Kw |
Rotor
|
No2 |
Capacity: 6x50ml Max Speed: 5000r/min Max RCF:3780xg Adaptor: 15ml、20ml |
|
|
|
No3 |
Capacity: 4 x500ml Max Speed: 4000r/min Max RCF:3780 xg
|
Adaptor:4 x20 x1.5ml、4 x20 x5ml/7ml(Blood Vacuum Tube)、 4 x 15 x 10ml (Internal Thread)、4 x8 x15ml、4 x9 x20ml、4 x9 x20ml、4 x4 x50ml、4 x2 x100ml、4 x250ml
|
|
|
No3 |
Capacity: 4 x750ml Max Speed: 4000r/min Max RCF:3780
|
Adaptor:4 x21 x1.5ml、4 x24 x5ml/7ml(Blood Vacuum Tube)、 4 x 37 x 5ml/7ml (G RIA Tube)、4 x 20 x 10ml (Internal Thread)、4 x14 x15ml、4 x12 x20ml、4 x5 x50ml、4 x3 x100ml、4 x250ml、4 x500ml
|
|
|
No5 |
Capacity: Square Bucket Max Speed: 4000r/min Max RCF:3040 xg |
Adaptor:4 x25 x1.5ml、4 x28 x5ml (Blood Vacuum Tube)、 4 x 20 x 10ml (Internal Thread)、4 x 10x 15ml、4 x4 x50ml、4 x250ml
|
|
|
No4 |
Capacity: 2x2 x96 Max Speed: 4000r/min Max RCF:2200 xg (Microplate Bucket) |
|
|
|
No5 |
Capacity: 4x2 x96 Max Speed: 4000r/min Max RCF:3040 xg (Microplate Bucket) |
|
|
