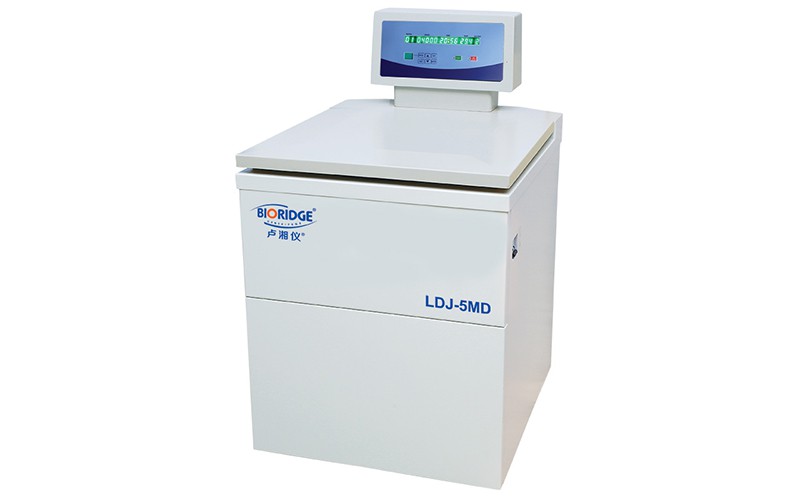

This machine can be applied to test the contents of water and other sediments in the oil or the insoluble ingredients in the lubricant.
Send InquiryThis machine can be applied to test the contents of water and other sediments in the oil or the insoluble ingredients in the lubricant.
Technical performance
• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• Essential configuration included rotor exchange, speed/RCF, time, temperature, 9 levels acceleration and deceleration is the most economical choice.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
LDJ-5MD |
LDJ-5M |
|
Max speed |
4000r/min |
5000r/min |
|
Max RCF |
4690xg |
3850xg |
|
Max capacity |
4x100ml/200ml |
36x10ml |
|
Speed accuracy |
± 10r/min |
|
|
Time setting |
1s~99h59min59s |
|
|
Temperature setting |
20~80℃ |
|
|
Temperature accuracy |
± 2℃ |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC220V 50Hz 20A |
AC220V 50Hz 20A 1.5Kw |
|
Consumption |
2.5Kw |
1.5Kw |
|
Dimension(L×W×H) |
710mm×840mm×1200mm |
650mm×710mm×1100mm |
|
Packing size(L×W×H) |
890mm×960mm×1450mm |
740mm×830mm×1300mm |
|
Net weight (No rotor) |
320kg |
140kg |
Rotor

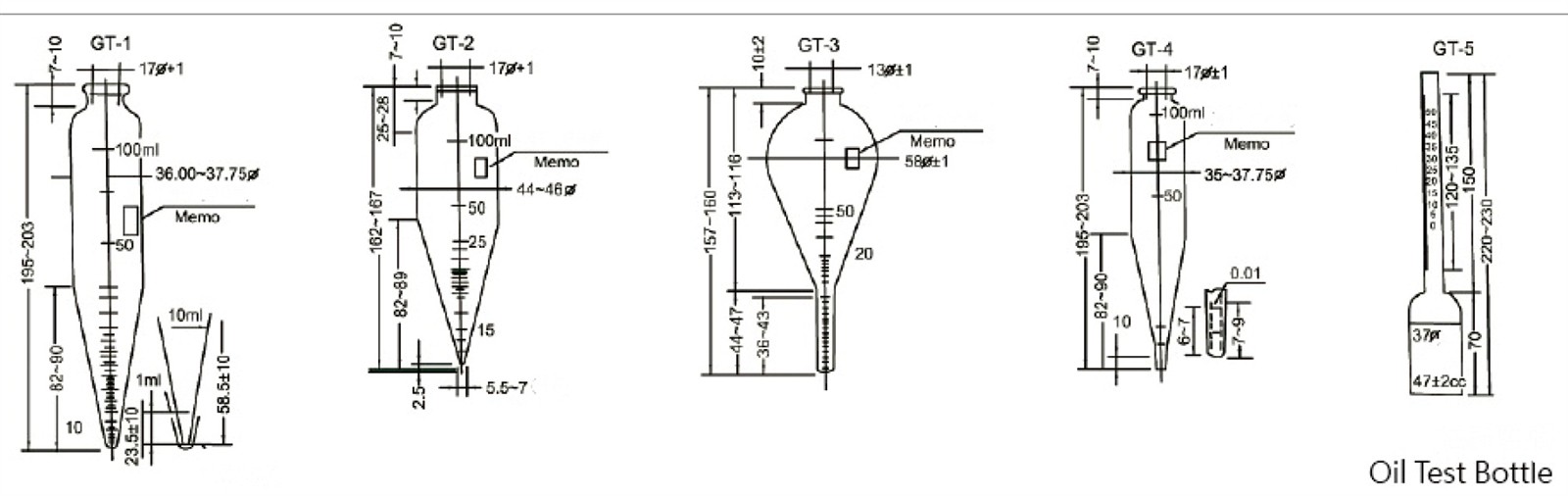

<195mm Length of Oil tube or small capacity used in LDJ-5MD
>195mm Length of Oil tube or small capacity used in LDJ-5MD
