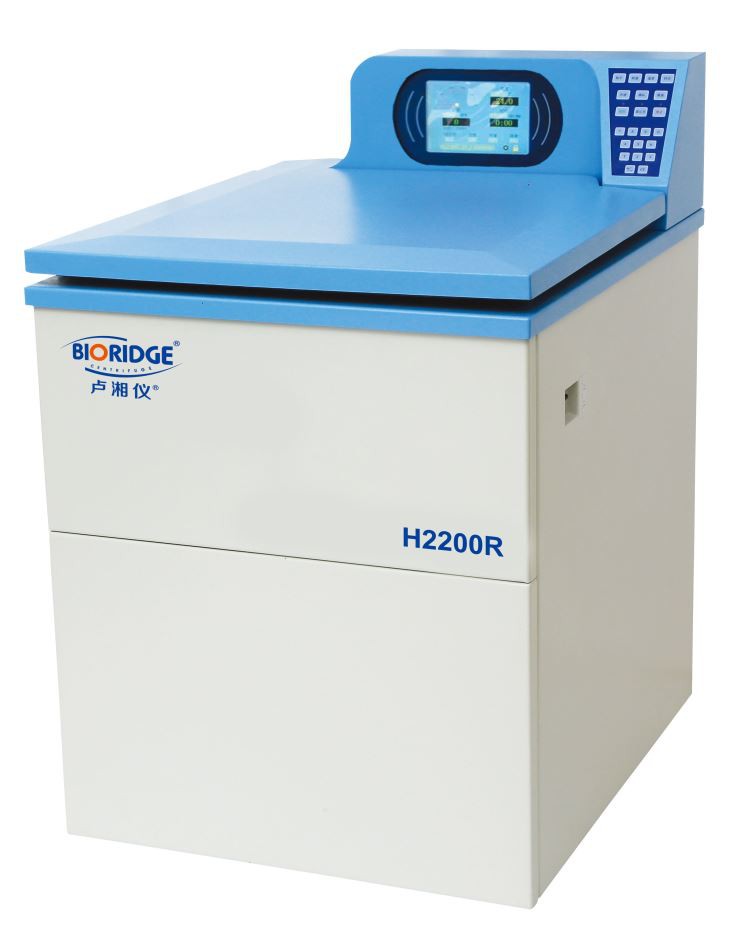

H2200R Floor-standing High-Speed continuous flow centrifuge

Centrifugal tubes for high speed continuous flow centrifuge are typically made of plastic and polypropylene, polyethylene, polycarbonate or borosilicate glass, borosilicate plastic, and the like. In practice, various centrifuge tubes can be selected according to different requirements.

Send Inquiry

When a substance is precipitated in a medium, it is accompanied by a diffusion phenomenon. The diffusion is unconditional and absolute. The smaller the particle size of the substance, the larger the range of diffusion. The sedimentation is subject to the external force. The interview is conditional, and the mass of the object is larger. The faster the sedimentation rate, the high-speed continuous flow centrifuge is available because some of the particles are too small to see the sedimentation process.

High speed continuous flow centrifuge technical performance

The max speed is 22000rpm, and Max RCF is 52000g.

It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.

Imported compressor unit with Non-CFC.refrigerant. It measures up to environmental standards.

The machine is programmable. The operation data can be stored automatically.

LCD or LED display and touching panel makes the operation easy.

The real-time conversation of Speed and RCF is convenient for operation.

It has self-locking device, over-speed safety device, over-temperature safety device, imbalance safety device and automatic alarm device.

It has 10 files of acceleration and deceleration level for your choice.

Silastic sealed ring comfort to GMP. US FDA certificated.

High speed continuous flow centrifuge specification

Model	H2200R
Max speed	22000r/min
Max RCF	52000xg
Max capacity	500mlx6
Speed accuracy	± 50r/min
Time setting	1min~99h59min
Temperature Setting	-20 ～ +40 ℃
Temperature Accuracy	±1 ℃
Compressor Unit	French Tecumseh Compressor Unit, R404a
Noise	<65dB(A)
Power supply	110V/60Hz 220V /50Hz
Dimension(LxWxH)	710mmx840mmx1140mm
Packing size(LxWxH)	890mmx960mmx1400mm
Net weight	280kg

High speed continuous flow centrifuge accessories Center

	NO.1 Capacity:1.5ml/2.2ml×36 Max Speed:22000r/min RCF:52000×g Adapters:0.2ml、0.5ml		NO.1 Capacity: 10ml×16 Max Speed: 22000r/min RCF: 52000×g Adapters：1.5ml、5ml
	NO.1 Capacity:5ml×16 Speed: 22000r/min RCF:52000×g Adapters:0.5ml、1.5ml		NO.2 Capacity:10ml×18 Speed: 21000r/min RCF: 50400×g Adapters:1.5ml、5ml
	NO.3 Capacity: 50ml×6 Speed: 20000r/min RCF:43000×g Adapters:10ml、20ml		NO.4 Capacity: 50ml×8 Speed: 18000r/min RCF:35047×g Adapters:10ml、20ml
	NO.5 Capacity: 20ml×12 Speed: 16500r/min RCF:31100×g Adapters:5ml、10ml		NO.6 Capacity: 15ml×32 Speed: 16000r/min RCF:30940×g Adapters:5ml、10ml
	NO.7 Capacity: 70ml×6 Speed: 15000r/min RCF:25700×g		NO.8 Capacity: 100ml/85ml×8 Speed: 14000r/min RCF:26952×g Adapters:10ml、20ml
	NO.9 Capacity: 250ml×6 Speed: 12000r/min RCF:22470×g Adapters:50ml、100ml		NO.10 Capacity: 300ml×6 Speed: 11000r/min RCF:19650×g Adapters:50ml、100ml
	NO.11 Capacity: 500ml/400ml×6 Speed: 9000r/min RCF:14400×g Adapters:50ml、100ml、250ml		Continuous Flow Rotor Capacity: 1000ml Speed: 14000r/min RCF:21500×g Standard flow:200-600ml/min Material:Aluminum alloy Stainless Steel
	Continuous Flow Rotor Capacity: 3000ml Speed: 8000r/min RCF:9500×g Standard flow:200-800ml/min Material:Aluminum alloy Stainless Steel		NO.14 Capacity: 600ml×6 Speed: 7000r/min RCF:9100×g Adapters:50ml、100ml、250ml
