It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send Inquiry

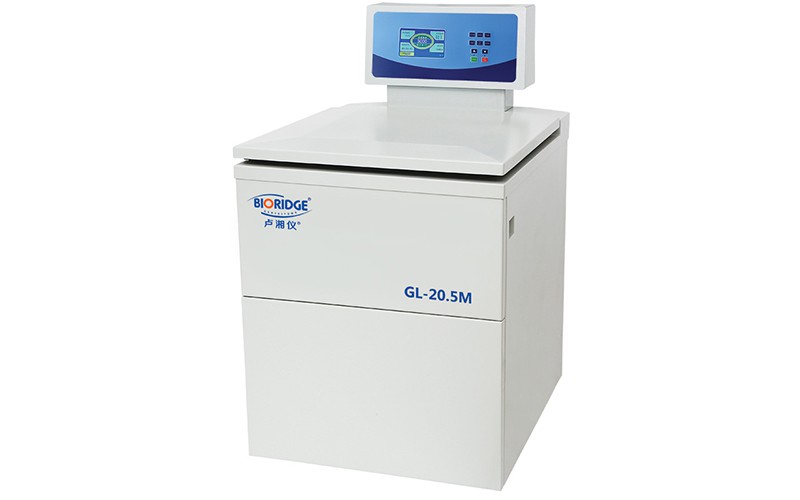

Technical performance
• The max speed is 20500rpm, and the largest capacity of swing rotor is 4X750ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• Essential configuration included rotor exchange, speed/RCF, time, temperature, 9 levels acceleration and deceleration is the most economical choice.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
GL-20.5M |
|
Max speed |
20500r/min |
|
Max RCF |
29200xg |
|
Max capacity |
4x750ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1s~99h 59min59s |
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
Temperature accuracy |
±1 ℃ |
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
Noise |
<65db(A) |
|
Power supply |
AC220V, 50Hz-60Hz |
|
Consumption |
1.5kw |
|
Dimension(L×W×H) |
650mm×710mm×1100mm |
|
Packing size(L×W×H) |
740mm×830mm×1300mm |
|
Net weight (No rotor) |
170kg |
Rotor
|
No1
|
Capacity: 12x1.5ml/2.2ml Max Speed: 20500r/min Max RCF: 29200xg Adaptor: 0.2ml、0.5ml |
No2 |
Capacity: 12x10ml Max Speed: 15000r/min Max RCF: 23120xg Adaptor: 1.5ml、5ml |
|
|
No3
|
Capacity: 6x50ml Max Speed: 13000r/min Max RCF: 17940xg Adaptor: 15ml、20ml |
No7 |
Capacity:24x1.5ml/2.2ml Max Speed: 16500r/min Max RCF: 24890xg Adaptor:0.2ml、0.5ml |
|
|
No9
|
Capacity: 4x100ml Max Speed: 10000r /min Max RCF: 11720xg Adaptor: 10ml、20ml |
No10 |
Capacity: 4 x 2 x 96ml Max Speed: 3300r/min Max RCF: 2200xg (Microplate Bucket) |
|
|
No4 |

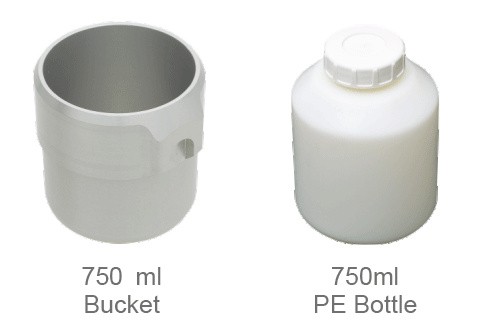

Capacity: 4 x 750ml Max Speed: 4000r/min Max RCF: 3500xg |

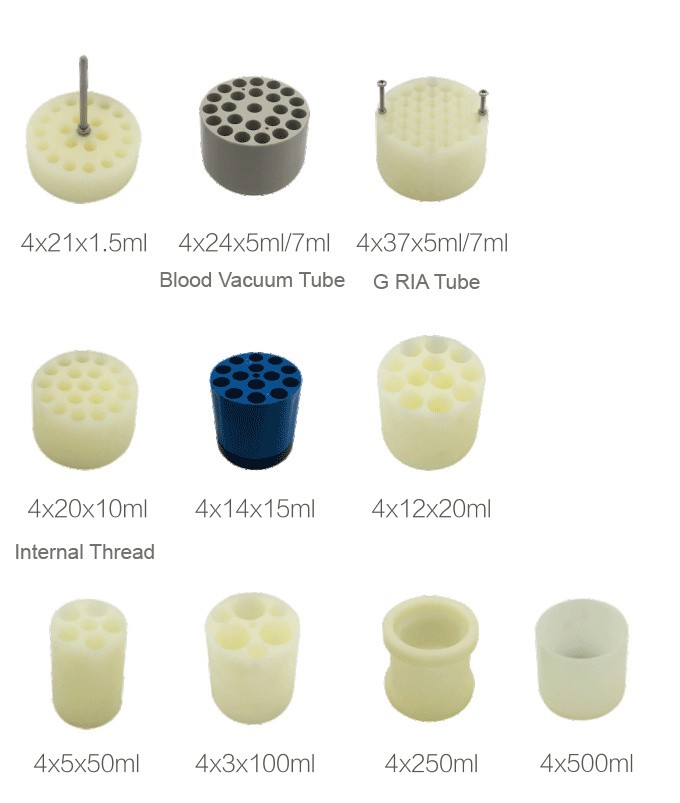

Adaptor： 4x21x1.5ml 4x24x5ml/7ml 4x37x5ml/7ml 4x20x10ml 4x14x15ml 4x12x20ml 4x5x50ml 4x3x100ml 4x250ml 4x500ml |
|
|
|

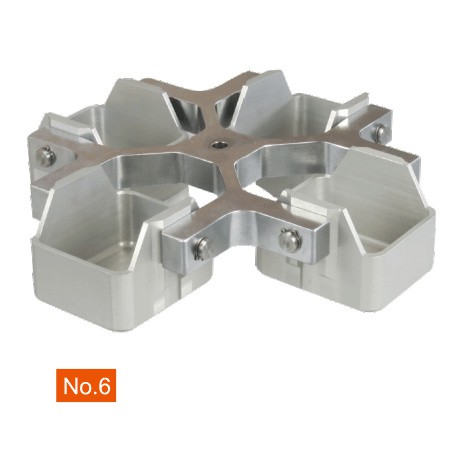

No6 |
Square Bucket Max Speed: 4000r/min Max RCF: 3040xg |

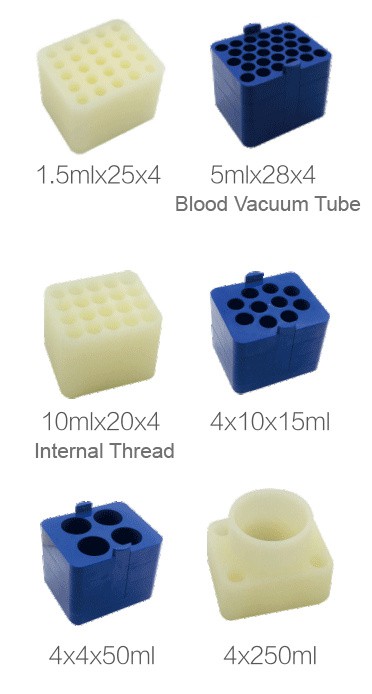

Adaptor： 1.5mlx25x4 5mlx28x4 10mlx20x4 4x10x15ml 4x4x50ml 4x250ml |
|
|
