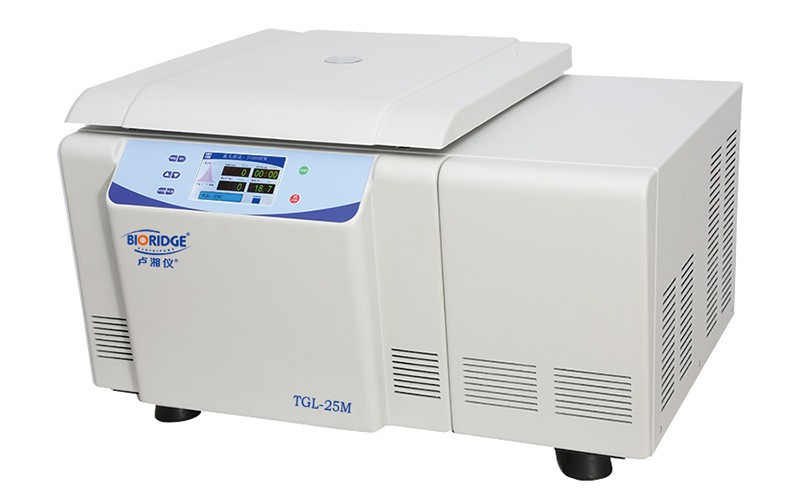

TGL-25M Tabletop High-Speed And High-Capacity Refrigerated Centrifuge

It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.

Send Inquiry

Technical performance

• The max speed is 25000rpm, and the largest RCF more than 50000xg.

• It is installed with German Hanning Motor.

• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.

• LCD touch screen make visualized operation conveniently.

• Imported compressor unit with Non-CFC refrigerant R404a.

• Automatic rotor recognition make safety for multiple rotors choice. (Option)

• Up to 6 user programs storage in the surface is selected directly.

• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.

• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.

• Silastic sealed ring comfort to GMP, US FDA certificated

Specification

Model	TGL-25M
Max speed	25000r/min
Max RCF	50560xg
Max capacity	6x100ml
Speed accuracy	± 10r/min
Time setting	1s~99h 59min59s
Temperature setting	-20 ℃ ～ +40 ℃
Temperature accuracy	±1 ℃
Compressor unit	French Tecumseh Compressor Unit R404a
Noise	<65db(A)
Power supply	AC110V/AC220V, 50Hz-60Hz
Consumption	1.5kw
Dimension(L×W×H)	725mm×600mm×440mm
Packing size(L×W×H)	910mm×720mm×620mm
Net weight (No rotor)	100kg

Rotor

No1	Capacity: 12x1.5ml/2.2ml Max Speed: 25000r/min Max RCF: 44720xg Adaptor: 0.2ml、0.5ml	No2	Capacity: 12x5ml Max Speed: 14000r/min Max RCF: 21912xg Adaptor: 0.5ml、1.5ml
No3	Capacity: 12x10ml Max Speed: 19000r/min Max RCF: 36715xg Adaptor: 1.5ml、5ml	No4	Capacity: 6x50ml Max Speed: 13000r/min Max RCF: 17940xg Adaptor: 10ml、15ml、20ml
No5	Capacity: 48x1.5ml Max Speed: 19000r/min Max RCF: 38987xg Adaptor: 0.2ml、0.5m	No7	Capacity: 24x1.5ml/2.2ml Max Speed: 21000r/min Max RCF: 42149xg Adaptor: 0.2ml、0.5ml
No8	Capacity: 6x85ml Max Speed: 12000r/min Max RCF: 15805xg Adaptor: 15ml、20ml、50ml	No9	Capacity: 6x100ml Max Speed: 10000r/min Max RCF: 11960xg Adaptor: 10ml、20ml
No10	Capacity: 6x30ml Max Speed: 20000r/min Max RCF: 35328xg
