It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send InquiryTechnical performance
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.

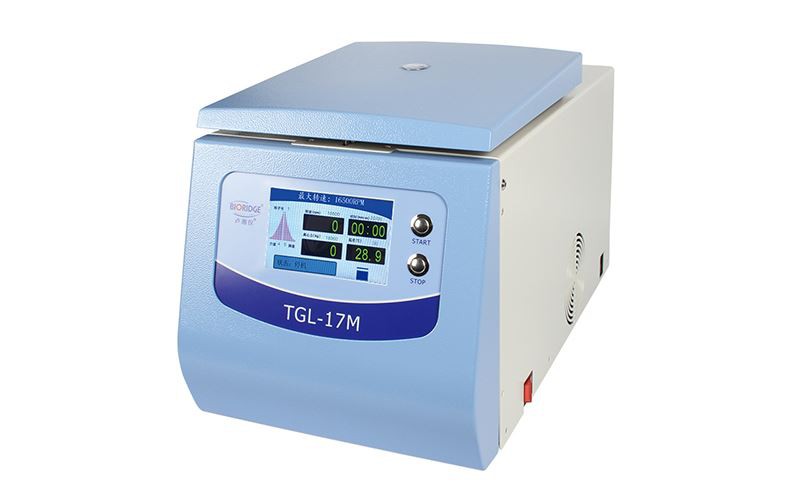

• LCD touch screen make visualized operation conveniently. (TGL-17M)
• Digital LCD screen make operation conveniently. (TGL-16.5M)
• Imported compressor unit with Non-CFC refrigerant R134a.
• Automatic rotor recognition make safety for multiple rotors choice. (TGL-17M)
• Up to 99 user programs storage meet more demands. (TGL-17M)
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Very fast acceleration and deceleration reaches some rotors in less than 20sec.
• (TGL-17M)
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TGL-17M |
TGL-16.5M |
|
Max speed |
17000r/min |
16500r/min |
|
Max RCF |
21532xg |
|
|
Max capacity |
36x1.5ml/2.2ml |
|
|
Speed accuracy |
± 30r/min |
|
|
Time setting |
1min~99h 59min |
|
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
|
Temperature accuracy |
±1 ℃ |
|
|
Compressor unit |
French Tecumseh Compressor Unit R134a |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
1kw |
|
|
Dimension(L×W×H) |
280mm×540mm×300mm |
|
|
Packing size(L×W×H) |
480mm×670mm×590mm |
|
|
Net weight (No rotor) |
30kg |
|
Rotor
|
No1 |
Capacity: 12x1.5ml/2.2ml Max Speed: 17000/16500(r/min) Max RCF: 19225xg/18360xg Adaptor: 0.2ml、0.5ml |
No3 |
Capacity: 24x1.5ml/2.2ml Max Speed: 15000(r/min) Max RCF: 21532xg Adaptor: 0.2ml、0.5ml |
|
No2 |
Capacity: 12x5ml Max Speed: 12000r/min Max RCF:10142xg Adaptor: 0.5ml、1.5m |
No4 |
Capacity: 36x1.5ml /2.2ml Max Speed: 12000r/min Max RCF: 13813xg |
|
No5 |
Capacity: 48x0.5ml Max Speed: 12000r/min Max RCF: 10920xg |
No5 |
Capacity: PCR 3 x 8x 0.2ml Max Speed: 15000r/min Max RCF: 13800xg |
|
No7 |
Capacity: 18x0.5ml Max Speed: 16000r/min Max RCF: 15300xg
|
|
|
