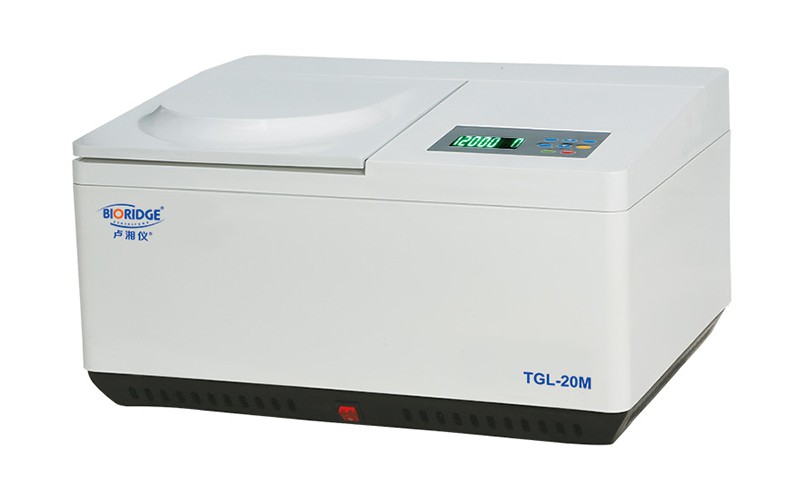

The main working principle of high speed freezing centrifuge: high speed freezing centrifuge is the powerful centrifugal force generated by high-speed rotation of the high speed freezing centrifuge frozen centrifuge rotor to accelerate the sedimentation speed of particles in the liquid, and separate the sedimentation coefficient and buoyant density of the sample.
Send InquiryTechnical performance
• It has micro-computer control, electronic lock and AC variable-conversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R134a.
• It has self-locking, over-speed detection, overtemperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
TGL-20M |
TGL-18M |
TGL-16M |
|
Max speed |
20000r/min |
18000r/min |
16000r/min |
|
Max RCF |
27800xg |
23755xg |
17800xg |
|
Max capacity |
4x100ml |
4x100ml |
6x50ml |
|
Speed accuracy |
± 30r/min |
||
|
Time setting |
1min~99h 59min |
||
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
||
|
Temperature accuracy |
±1 ℃ |
||
|
Compressor unit |
French Tecumseh Compressor Unit R134a |
||
|
Noise |
<65db(A) |
||
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
||
|
Consumption |
1.2kw |
||
|
Dimension(L×W×H) |
600mm×470mm×330mm |
||
|
Packing size(L×W×H) |
720mm×640mm×430mm |
||
|
Net weight (No rotor) |
50kg |
||
Rotor
|
No1 |
Capacity: 12x1.5ml/2.2ml Max Speed: 20000/18000/16000(r/min) Max RCF: 27800xg/22530xg/17800xg Adaptor: 0.2ml、0.5ml |
No2 |
Capacity: 24x1.5ml/2.2ml Max Speed: 16000/16000/13200(r/min) Max RCF: 23755xg/23755xg/16110xg Adaptor: 0.2ml、0.5ml |
|
No3 |
Capacity: 10x5ml Max Speed: 16000/13000/13000(r/min) Max RCF: 17280xg/11400xg/11400xg Adaptor: 0.5ml、1.5m |
No3 |
Capacity: 12x5ml Max Speed: 16000/13000/13000(r/min) Max RCF: 17280xg/11400xg/11400xg Adaptor: 0.5ml、1.5ml |
|
No4 |
Capacity: 2 x48 Max Speed: 3000r/min Max RCF:1400xg |
No5 |
Capacity: 36x0.5ml Max Speed: 13000/13000/12000(r/min) Max RCF: 16760xg/16760xg/14300xg |
|
No5 |
Capacity: 48x0.5ml Max Speed: 13000r/min 13000r/min 12000r/min Max RCF: 16760xg 16760xg 14300xg |
No5 |
Capacity: 12x10ml Max Speed: 13000r/min 13000r/min 12000r/min Max RCF: 16760xg 16760xg 14300xg Adaptor: 1.5ml、5ml |
|
No5 |
Capacity: 8x15ml Max Speed: 13000r/min 13000r/min 12000r/min Max RCF: 16760xg 16760xg 14300xg Adaptor: 1.5ml、5ml |
No6 |
Capacity: 6x50ml Max Speed: 12000r/min 12000r/min 11000r/min Max RCF: 13000xg 13000xg 10950xg Adaptor: 15ml、20ml |
|
No6 |
Capacity: 4x100ml Max Speed: 12000r/min Max RCF: 13000xg Adaptor: 10ml、20ml Only for TGL-20M&TGL-18M |
No7 |
Capacity: 4x10ml Max Speed: 6000r/min Max RCF: 3200xg |
|
No8 |
Capacity: 48x1.5ml Max Speed: 15000/14000(r/min) Max RCF: 24637xg/21461xg Adaptor: 0.2ml、0.5ml Only for TGL-20M&TGL-18M |
|
|
