It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send InquiryTechnical performance
• The max speed is 25000rpm, and the largest capacity of fixed rotor is 4X1000ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Front LCD touch screen make operation conveniently in any installed position.
• Imported compressor unit with Non-CFC refrigerant R404a.
• The operating data and failure record can be stored to read and print via USB interface.
• Automatic rotor recognition make safety for multiple rotors choice.
• Up to 100 user programs storage and multistep-stages program supplied meet more demands.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 10 levels acceleration and 11 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Imported PC transparent bottles is suitable for high temperature sterilization.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
BH2500R BH2300R |
|
Max speed |
25000r/min 23000r/min |
|
Max RCF |
64983xg 60900xg |
|
Max capacity |
4x1000ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1s~99h 59min59s |
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
Temperature accuracy |
±1 ℃ |
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
Noise |
<65db(A) |
|
Power supply |
AC220V, 50Hz-60Hz |
|
Consumption |
5kw |
|
Dimension(L×W×H) |
900mm×760mm×1005mm |
|
Packing size(L×W×H) |
1020mm×880mm×1105mm |
|
Net weight (No rotor) |
350kg |
Rotor
|
No1 |
Capacity: 10x5ml Max Speed: 25000r/min/23000r/min Max RCF: 64983xg/55000xg Adaptor: 0.5ml、1.5ml |
No1 |
Capacity: 24x1.5ml/2.2ml Max Speed: 25000r/min/23000r/min Max RCF: 64983xg/55000xg Adaptor: 0.2ml、0.5ml |
|
No2 |
Capacity: 16x10ml Max Speed: 23000r/min Max RCF: 60900xg Adaptor: 1.5ml、5ml |
No3 |
Capacity: 8x50ml Max Speed: 18000r/min Max RCF: 40930xg Adaptor: 10ml、20ml |
|
No4 |
Capacity: 6x250ml Max Speed: 14000r/min Max RCF: 30200xg Adaptor: 50ml、100ml |
No5 |
Capacity: 6x500ml Max Speed: 10000r/min Max RCF: 17800xg Adaptor: 50ml、100ml、 250ml |
|
No6 |
Capacity: 4x1000ml Max Speed: 7000r/min Max RCF: 9980xg Adaptor: 100ml、250ml、 300ml、500ml |
No7 |
Description: Continuous Rotor Capacity: 1000ml Max Speed: 16000r/min Max RCF: 28100xg Standard Flow: 200-600ml/min Material: Aluminum Alloy |
|
No8 |
Description: Continuous Rotor Capacity: 3000ml Max Speed: 10000r/min Max RCF: 14800xg Standard Flow: 200-800ml/min Material: Aluminum Alloy |
|
|
|
Swing rotor |
Capacity |
Max.Speed |
Max.RCF |
|
No.9 |
4x50ml |
10000r/min |
15316xg |
|
No.9 |
4x85ml |
10000r/min |
15316xg |
|
No.10 |
8x50ml |
10000r/min |
17329xg |

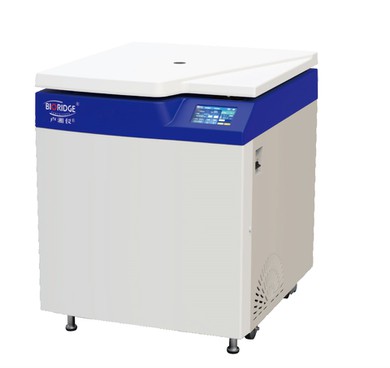

Hot Tags: bh2500r/bh2300r floor-standing high-speed refrigerated centrifuge, China, manufacturers, suppliers, factory, buy, price, for sale, Low Temperature Centrifuge
