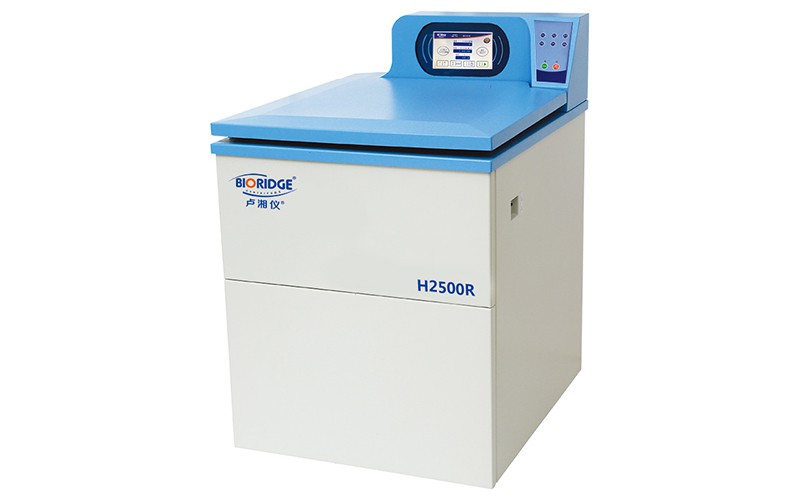

It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send InquiryTechnical performance
• The max speed is 25000rpm, and the largest capacity of fixed rotor is 4X1000ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• LCD touch screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• Automatic rotor recognition make safety for multiple rotors choice.
• Up to 100 user programs storage meet more demands.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
H2500R H2100R |
|
Max speed |
25000r/min 21000r/min |
|
Max RCF |
64983xg 50400xg |
|
Max capacity |
4x1000ml 6x500ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1s~99h 59min59s |
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
Temperature accuracy |
±1 ℃ |
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
Noise |
<65db(A) |
|
Power supply |
AC220V, 50Hz-60Hz |
|
Consumption |
5kw |
|
Dimension(L×W×H) |
900mm×760mm×1005mm |
|
Packing size(L×W×H) |
1020mm×880mm×1105mm |
|
Net weight (No rotor) |
350kg |
Rotor
|
No1 |
Capacity: 24x1.5ml/2.2ml Max Speed: 25000r/min/21000r/min Max RCF: 64983xg/50400xg Adaptor: 0.2ml、0.5ml |
No2 |
Capacity: 16x10ml Max Speed: 23000r/min/21000r/min Max RCF: 60900xg/50400xg Adaptor: 1.2ml、5ml |
|
No3 |
Capacity: 8x50ml Max Speed: 18000r/min Max RCF: 40930xg/35047xg Adaptor: 10ml、20ml |
No4 |
Capacity: 6x500ml Max Speed: 10000r/min/9000r/min Max RCF: 17800xg/14400xg Adaptor: 50ml、100ml、250ml |
|
No5 |
Capacity: 6x500ml Max Speed: 10000r/min/9000r/min Max RCF: 17800xg/14400xg Adaptor: 50ml、100ml、250ml |
No6 H2500R only |
Capacity: 4x1000ml Max Speed: 8000r/min Max RCF: 12879xg Adaptor: 100ml、250ml、300ml、500ml |
|
No8 |
Capacity: 8x100ml/85ml Max Speed: 14000r/min Max RCF: 26952xg Adaptor: 10ml、20ml |
No12 |
Description: Continuous Rotor Capacity: 1000ml Max Speed: 16000r/min Max RCF: 28100xg Standard Flow: 200-600ml/min Material: Aluminum Alloy |
|
No13 |
Description: Continuous Rotor Capacity: 3000ml Max Speed: 10000r/min Max RCF: 14800xg Standard Flow: 200-800ml/min Material: Aluminum Alloy |
No16 |
Capacity: 12x15ml Max Speed: 16000r/min Max RCF:30194xg |
|
Angle rotor |
Capacity |
Max.Speed |
Max.RCF |
|
No1 |
10x5ml |
25000r/min/21000r/min |
64983xg/50400xg |
|
No1 |
36x1.5/2.2ml 16x10/5ml |
21000r/min |
50400xg |
|
No.2 |
18x10ml |
21000r/min |
50400xg |
|
No.3 |
6x50ml |
20000r/min |
43000xg |
|
No.5 |
12x20ml |
16500r/min |
31100xg |
|
No.6 |
32x15ml |
16000r/min |
30940 xg |
|
No.7 |
6x70ml |
15000r/min |
25700xg |
|
No.4/No9 |
6x250ml |
14000r/min/12000r/min |
30200xg /22470xg |
|
No.14 |
6x600ml |
7000r/min |
9100xg |
|
Swing rotor |
|
|
|
|
No.9 No15 |
4x50ml/4x85ml |
10000r/min/8000r/min |
15316xg/9800xg |
|
No.10 |
8x50ml |
10000r/min |
17329xg |
