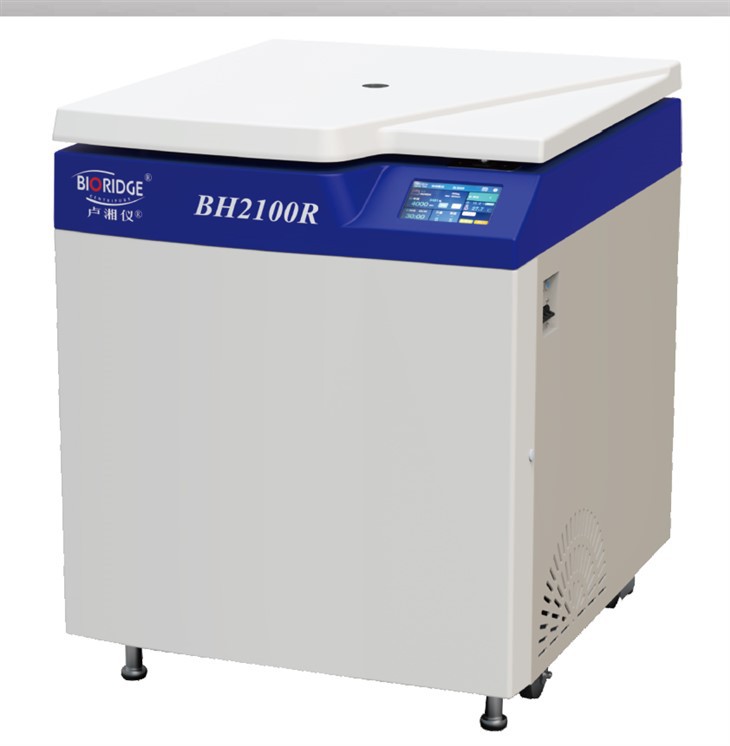

It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
Send InquiryTechnical performance
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Front LCD touch screen make operation conveniently in any installed position.
• Imported compressor unit with Non-CFC refrigerant R404a.
• The operating data and failure record can be stored to read and print via USB interface.
• Automatic rotor recognition make safety for multiple rotors choice.
• Up to 100 user programs storage and multistep-stages program supplied meet more demands.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 10 levels acceleration and 11 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Imported PC transparent bottles is suitable for high temperature sterilization.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
BH2200R BH2100R |
|
Max speed |
22000r/min 21000r/min |
|
Max RCF |
52000xg 50400xg |
|
Max capacity |
6x600ml 6x500ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1s~99h 59min59s |
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
Temperature accuracy |
±1 ℃ |
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
Noise |
<65db(A) |
|
Power supply |
AC220V, 50Hz-60Hz |
|
Consumption |
5kw |
|
Dimension(L×W×H) |
900mm×760mm×1005mm |
|
Packing size(L×W×H) |
1020mm×880mm×1105mm |
|
Net weight (No rotor) |
350kg |
Rotor
|
No1
|
Capacity: 36x1.5ml/2.2ml Max Speed: 22000r/min/21000r/min Max RCF: 52000xg/50400xg Adaptor: 0.2ml、0.5m |
No2 |
Capacity: 12x20ml Max Speed: 16500r/min Max RCF: 31100xg Adaptor: 5ml、10m |
|
No3 |
Capacity: 18x10ml Max Speed: 21000r/min Max RCF: 50400xg Adaptor: 1.5ml、5ml |
No4 |
Capacity: 8x50ml Max Speed: 18000r/min Max RCF: 35047xg Adaptor: 10ml、20m |
|
No10 |
Capacity: 6x500ml Max Speed: 9000r/min Max RCF: 14400xg Adaptor: 50ml、100ml、250ml |
No13 |
Capacity: 6x250ml Max Speed: 12000r/min Max RCF: 22470xg Adaptor: 50ml、100ml |
|
No23 |
Description: Continuous Rotor Capacity: 1000ml Max Speed: 16000r/min Max RCF: 28100xg Standard Flow: 200-600ml/min Material: Aluminum Alloy |
No24 |
Description: Continuous Rotor Capacity: 3000ml Max Speed: 10000r/min Max RCF: 14800xg Standard Flow: 200-800ml/min Material: Aluminum Alloy |
|
No25 |
Capacity: 12x15ml Max Speed: 16000r/min Max RCF: 30194xg |
|
|
|
Angle rotor |
Capacity |
Max.Speed |
Max.RCF |
|
No.1 |
16x10ml |
22000r/min/21000r/min |
52000xg/50400xg |
|
No.1 |
16x5ml |
22000r/min/21000r/min |
52000xg/50400xg |
|
No.5 |
6x70ml |
15000r/min |
25700xg |
|
No.9 |
6x300ml |
11000r/min |
19650xg |
|
No.11 |
6x50ml |
20000r/min |
43000xg |
|
No.12 |
8x100ml |
14000r/min |
26952xg |
|
No.14 |
32x15ml |
14000r/min |
34512xg |
|
No.17 |
6x600ml |
7000r/min |
9100xg |
|
Swing rotor |
Capacity |
Max.Speed |
Max.RCF |
|
No.6 |
4x750ml |
5000r/min |
5470xg |
|
No.7 |
8x50ml 32x15ml |
5000r/min |
4390xg |
|
No.19 |
96x10ml 72x15ml 20x50ml |
5000r/min |
4390xg |
|
No.20 |
Microplate 2x2x96 |
4000r/min |
2236xg |
|
No.21 |
4x50ml/4x85ml |
8000r/min |
9800xg |
