Shanghai Lu Xiangyi Centrifuge Instrument Co., Ltd always pay attention to talents cultivation and reservation. There are many senior engineers and doctors, most of them have experience of foreign education and working. With the guidance of leading experts, we cooperate with tertiary institutions and research institute to develop new product.
Send InquiryTechnical performance
• The max speed is 19000rpm, and the largest capacity of swing rotor is 4X750ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• LCD touch screen make visualized operation conveniently.
• Automatic rotor recognition make safety for multiple rotors choice. (Option)
• Up to 6 user programs storage in the surface is selected directly.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• It has 9 levels acceleration and 10 levels deceleration to be setting according to the different requirement. Slow down freely is available.
• Silastic sealed ring comfort to GMP, US FDA certificated
Specification
|
Model |
TG19 |
TD6 |
|
Max speed |
19000r/min |
6000r/min |
|
Max RCF |
26307xg |
5420xg |
|
Max capacity |
4x750ml |
|
|
Speed accuracy |
± 10r/min |
|
|
Time setting |
1s~99min59s |
|
|
Noise |
<65db(A) |
|
|
Power supply |
AC110V/AC220V, 50Hz-60Hz |
|
|
Consumption |
1.2kw |
|
|
Dimension(L×W×H) |
495mm×620mm×445mm |
|
|
Packing size(L×W×H) |
730mm×670mm×570mm |
|
|
Net weight (No rotor) |
70kg |
|
Rotor for TG19
|
No1 |
Capacity: 12x1.5ml Max Speed:19000r/min Max RCF: 24540xg Adaptor: 0.2ml、0.5ml |
No2 |
Capacity: 12x5ml Max Speed: 16500r/min Max RCF: 19175xg Adaptor: 0.5ml、1.5ml |
|
No3 |
Capacity: 6x30ml Max Speed: 15000r/min Max RCF: 23120xg |
No3 |
Capacity: 12x10ml/8x15ml Max Speed:15000r/min Max RCF: 23120xg Adaptor: 1.5ml、5ml |
|
No4 |
Capacity:6x50ml Max Speed: 13000r/min Max RCF: 17940xg |
No7 |
Capacity: 24x1.5ml/2.2ml Max Speed: 16500r/min Max RCF: 26050xg Adaptor: 0.2ml、0.5ml |
|
No8 |
Capacity: 6x85ml Max Speed: 12000r/min Max RCF: 15805xg Adaptor: 50ml、15ml、20ml |
No9 |
Capacity: 6x100ml Max Speed: 10000r/min Max RCF: 119600xg Adaptor: 10ml、20ml |
|
No10 |
Capacity:48x1.5ml Max Speed: 15500r/min Max RCF: 26307xg Adaptor: 0.2ml、0.5ml |
|
|
Rotor for TG19 & TD6
|
No1 |
Capacity: 6 x50ml Max Speed:6000r/min Max RCF:5420 xg Adaptor:15ml、20ml |

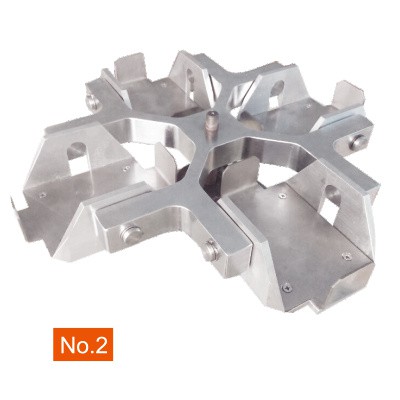

No2 |
Capacity: 4 x2 x96 Max Speed: 4000r/min Max RCF: 3040xg Microplate Bucket Thickness≤15.5mm x2
|
|
|

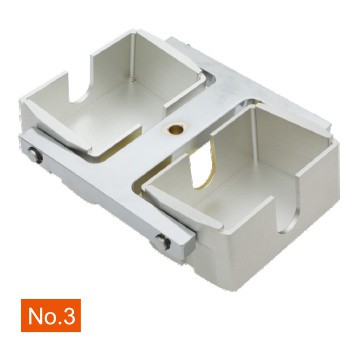

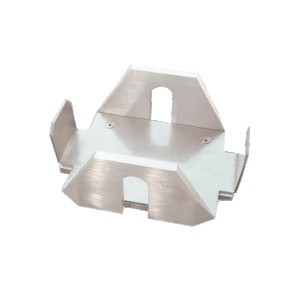

No3 |
Capacity: 2 x2 x96 Max Speed: 4000r/min Max RCF:2200xg Microplate Bucket |
|
|
|
|

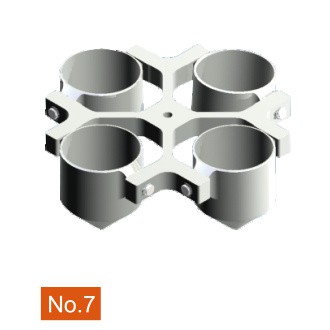

No7 |
Capacity: 4 x500ml Max Speed: 4000r/min Max RCF:3310xg |
Adaptor: 4 x7x15ml、4 x4 x50ml、4 x250ml、4 x500ml
|
||
|

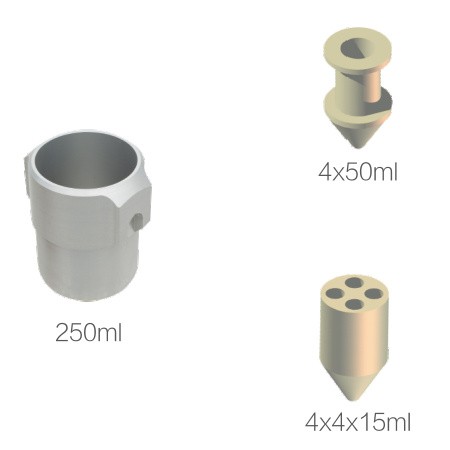

No7 |
Capacity: 4 x250ml Max Speed: 4000r/min Max RCF:3310xg |
Adaptor: 4 x7x15ml、4 x4 x50ml、4 x250ml
|
||
|

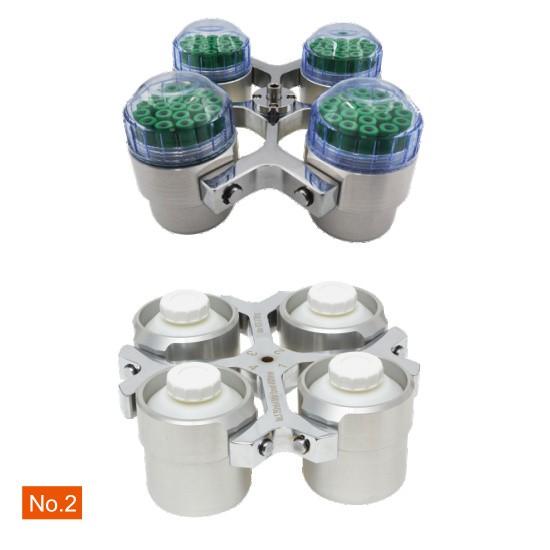

No2 |
Capacity:4 x500ml Max Speed:4000r/min Max RCF:3040 xg |

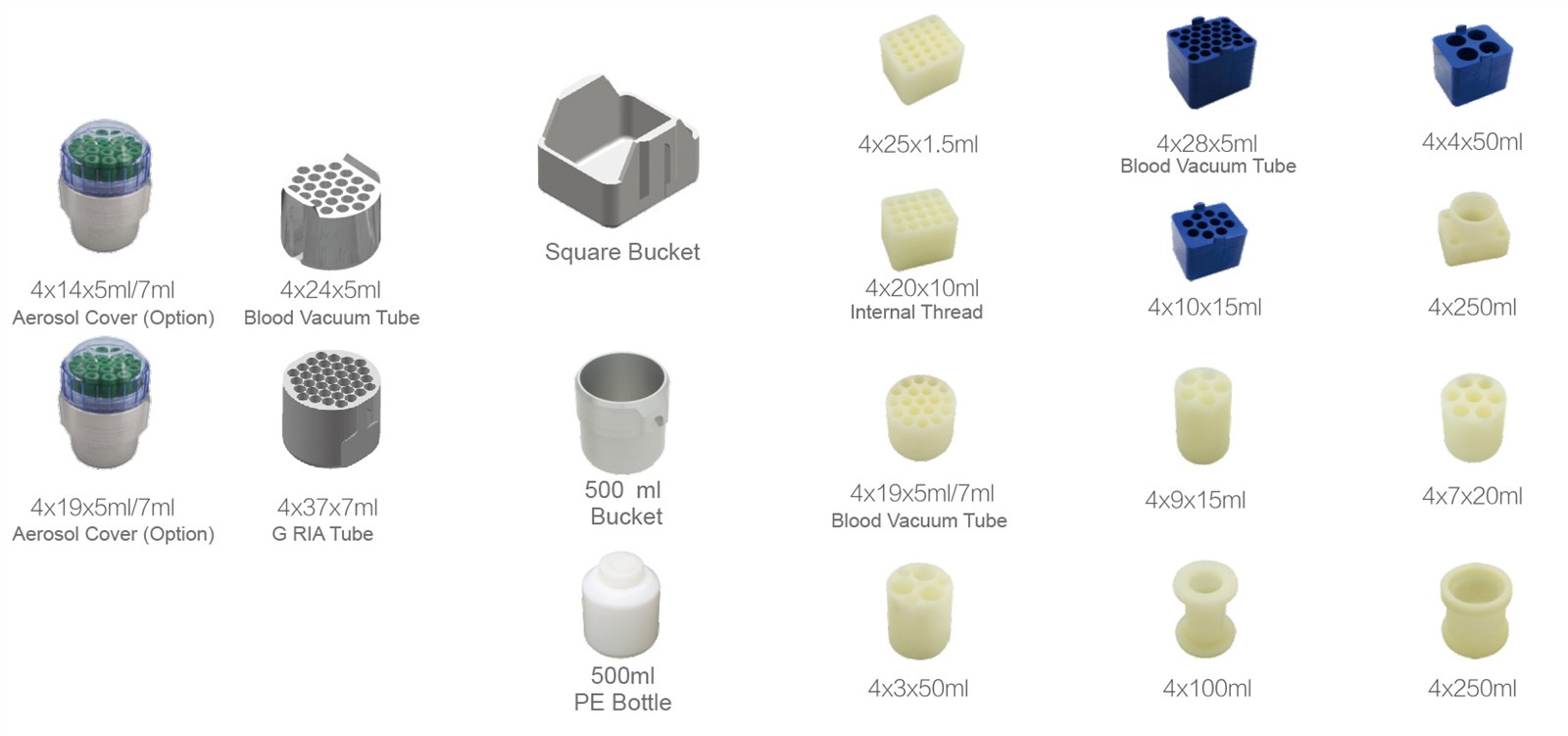

4 x14 x5ml/7ml Aerosol Cover (Option) 4 x24 x5ml Blood Vacuum Tube 4 x19 x5ml/7ml Aerosol Cover (Option) 4 x37 x7ml G RIA Tube |
Square Bucket Adaptor:4 x25 x1.5ml、4 x28 x5ml (Blood Vacuum Tube)、 4 x 20 x 10ml (Internal Thread)、4 x 10x 15ml、4 x4 x50ml、4 x250ml 500 ml Bucket Adaptor: 4 x19 x5ml/7ml、4 x9x15ml、 4 x 7 x 20ml、4 x3x50ml、4 x100ml、4 x250ml |
|
 |
||||
|

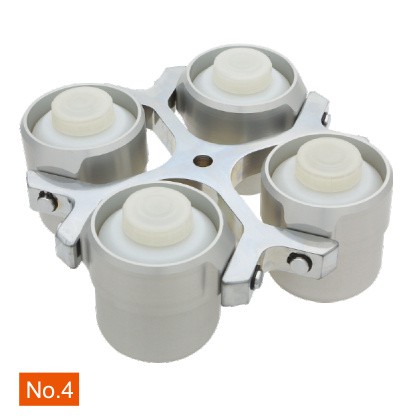

No4 |
Capacity:4 x750ml Max Speed:4000r/min Max RCF:3780xg |
750ml Bucket 750ml PE Bottle |
4 x24 x5ml/7ml (Blood Vacuum Tube)、 4x37x5ml/7ml(G RIA Tube)、 4 x14 x15ml、 4 x12 x20ml、 4 x5 x50ml、 4 x3 x100ml、 4 x250ml、 4 x500ml |
|
 |
||||
|

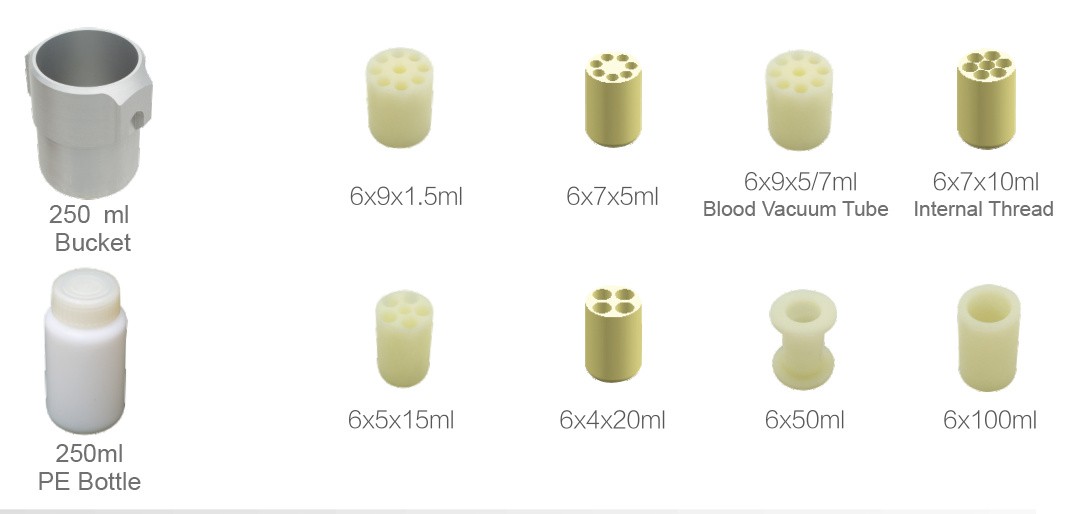

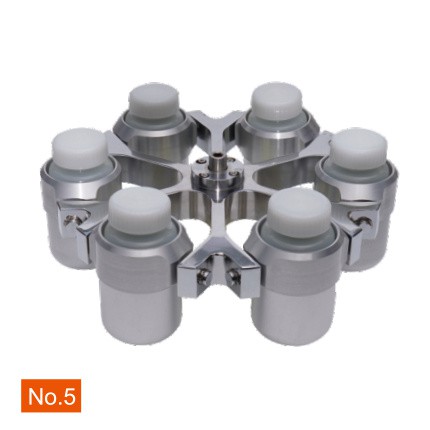

No5
|
Capacity:6 x250ml Max Speed:4200r/min Max RCF:3500xg |
250 ml Bucket |
6x9x1.5ml、 6x7 x5ml、 6x9x5/7ml(Blood Vacuum Tube)、 6x7x10ml(Internal Thread)、 6x5x15ml、 6x4 x20ml、 6 x50ml、 6 x100ml |
|
 |
||||
