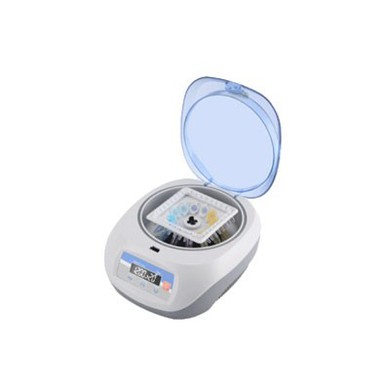

Mini Centrifuge TG10K
Product Details
Mini centrifuge TG10K
Main technical parameters
The reliable PI high-frequency full-range wide-range power control program can meet the requirements of voltage all ovr the world.
DC permanent Magnet motor has the speed range from 500 to 12000rpm. Speed increment is 500rpm.
Faster acceleration/deceleration stage to complete the experiment in a shorter time
The housing and rotor are made of high-strength material, which can resist chemical corrosion.. The rotor can be sterilized with a high temperature.
Unique rotor design is convenient for the operator to exchange rotors without any tools.
A combined type of rotor is compatible with a wide range of tubes.
The shock absorber is made of RSS, the noise of of machine is less than 60dB.
It has imbalance sensor, lid safety device and over speed safety device. LCD display can show Error code.
Integral silicon sealing ring is up to edible grade. The centrifuge is ISO and FDA certificated.
Main technical parameters
|
Model |
MiniL-12G |
|
Item No. |
2021005200 |
|
Voltage |
AC100-250V/50/60Hz |
|
Power fuse |
PPTC |
|
Input power |
45W |
|
Control Mode |
ST16MCU/PWM |
|
Display |
LCD |
|
Motor |
DC24V |
|
Time |
1-99min/1-59sec. |
|
Speed |
500~12000rpm±9% |
|
Speed Increment |
500rpm |
|
Max RCF |
9660×g |
|
Error |
Alarm+Code |
|
Noise |
≤60dB(A) |
|
Fastest acceleration time |
≤13s |
|
Fastest deceleration time |
≤16s |
|
Level of protection |
IP20 |
|
Ambient Temp./Humidity |
+5-40℃/80% |
|
Interference suppression criteria |
EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
|
(L×W×H) Size |
194mm×229mm×120mm |
|
(L×W×H)Packing size |
335mm×325mm×185mm |
|
Net Weight |
1.6kg |
TG10K rotor
|
Rotor's No. |
Volume (ml×tube) |
Max Speed(r/min) |
Max RCF (x g) |
|
No.1 Combined rotor |
1.5ml/2.2ml×12+0.2ml×8×4PCR |
12000 |
9500 |
|
No.2 Angle rotor |
0.2ml×12×4 PCR |
12000 |
5960 |
|
No.3 Angle rotor |
5ml×4 |
12000 |
9660 |
|
No.4 Angle rotor |
Capillary×12 |
12000 |
8371 |
|
No.5 Angle rotor |
5ml/1.8ml/1.1ml×4 |
7000 |
3180 |
