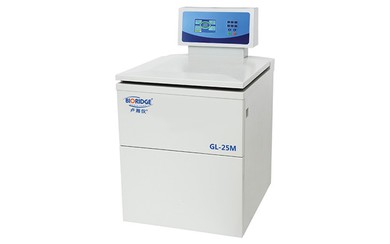

GL-25M/GL-21M Floor-standing High-Speed Refrigerated Centrifuge
Product Details
Technical performance
• The max speed is 25000rpm, and the largest capacity of fixed rotor is 4X1000ml.
• It has micro-computer control, electronic lock and AC variableconversion motor which delivers high torque.
• Digital LCD screen make visualized operation conveniently.
• Imported compressor unit with Non-CFC refrigerant R404a.
• It has self-locking, over-speed detection, over-temperature detection, imbalance detection that is automatic alarm device.
• Essential configuration included rotor exchange, speed/RCF, time, temperature, 9 levels acceleration and deceleration is the most economical choice.
• Silastic sealed ring comfort to GMP, US FDA certificated.
Specification
|
Model |
GL-25M GL-21M |
|
Max speed |
25000r/min 21000r/min |
|
Max RCF |
64983xg 50400xg |
|
Max capacity |
4x1000ml 6x500ml |
|
Speed accuracy |
± 10r/min |
|
Time setting |
1s~99h 59min59s |
|
Temperature setting |
-20 ℃ ～ +40 ℃ |
|
Temperature accuracy |
±1 ℃ |
|
Compressor unit |
French Tecumseh Compressor Unit R404a |
|
Noise |
<65db(A) |
|
Power supply |
AC220V, 50Hz-60Hz |
|
Consumption |
5kw |
|
Dimension(L×W×H) |
710mm×840mm×1200mm |
|
Packing size(L×W×H) |
889mm×960mm×1450mm |
|
Net weight (No rotor) |
290kg |
Rotor
|
No1 |
Capacity: 24x1.5ml/2.2ml Max Speed: 25000r/min/21000r/min Max RCF: 64983xg/50400xg Adaptor: 0.2ml、0.5ml |
No2 |
Capacity: 24x1.5ml/2.2ml Max Speed: 25000r/min/21000r/min Max RCF: 64983xg/50400xg Adaptor: 0.2ml、0.5ml |
|
No3 |
Capacity: 8x50ml Max Speed: 18000r/min Max RCF: 40930xg Adaptor: 10ml、20ml |
No4 |
Capacity: 6x250ml Max Speed: 14000r/min/12000r/min Max RCF: 30200xg/22470xg Adaptor: 50ml、100ml |
|
No5 |
Capacity: 6x500ml Max Speed: 10000r/min/9000r/min Max RCF: 17800xg/14400xg Adaptor: 50ml、100ml、250ml |
No6 GL-25M only
|
Capacity: 4x1000ml Max Speed: 8000r/min Max RCF: 12879xg Adaptor: 250ml、500ml |
|
No12 |
Capacity: 8x100ml Max Speed: 14000r/min Max RCF: 26952xg Adaptor: 10ml、20ml |
No14 |
Capacity: 32x15ml(Round) Max Speed: 14000r/min Max RCF: 34512xg Adaptor: 5ml、10ml |
|
No25 |
Capacity: 12x15ml(Conical) Max Speed: 16000r/min Max RCF: 30194xg |
|
|
|
Angle rotor |
Capacity |
Max.Speed |
Max.RCF |
|
No1 |
10x5ml |
25000r/min/21000r/min |
64983xg/50400xg |
|
No1 |
36x1.5/2.2ml 16x10/5ml |
21000r/min |
50400xg |
|
No.2 |
12x20ml |
16500r/min |
31100xg |
|
No.3 |
18x10ml |
21000r/min |
50400xg |
|
No.5 |
6x70ml |
15000r/min |
25700xg |
|
No.11 |
6x50ml |
20000r/min |
43000xg |
|
No.13 |
6x250ml |
12000r/min |
22470xg |
|
No.17 |
6x600ml |
7000r/min |
9100xg |
|
Continuous rotor |
|
|
|
|
No.11/No.23 |
1000ml |
16000r/min |
28100xg |
|
No.12/No.24 |
3000ml |
10000r/min |
14800xg |
|
Swing rotor |
|
|
|
|
No.7/No.20 |
Microplate 2x2x96 |
4000r/min |
2236xg |
|
No.8/No.20 |
4x750ml |
5000r/min |
5470xg |
|
No.13/No.7 |
4x50ml 4x85ml 32x15ml |
10000r/min/5000r/min |
15316xg4390xg |
|
No.19 |
96x10ml 72x15ml 20x50ml |
5000r/min |
4390xg |
|
No.20 |
Microplate 2x2x96 |
4000r/min |
2236xg |
|
No.21 |
4x50ml/4x85ml |
8000r/min |
9800xg |
